Overview
Quick Details
Applicable Industries
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works
After Warranty Service
Video technical support, Online support, Spare parts, Field maintenance and repair service
Condition
New
Type
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine, Other
Brick Raw Material
CONCRETE
Processing
Brick Molding Machine
Method
Hydraulic pressure
Automatic
Yes
Production Capacity (Pieces/8 hours)
Other, 4480 pcs/8hours, 2500 pcs/8hours, 3400 pcs/8hours, 1920 pcs/8hours, 5760 pcs/8hours, 1500 pcs/8hours, 1280 pcs/8hours, 3000 pcs/8hours, 12000 pcs/8hours, 3200 pcs/8hours, 2560 pcs/8hours, 1000 pcs/8hours, 800 pcs/8hours, 6000-20000blocks/day
Place of Origin
Shandong, China
Brand Name
hongbaoyuan
Voltage
local voltage
Dimension(L*W*H)
2650(L)*1650(W)*2000(H)mm
Certification
CE/BV/ISO:9001
Warranty
1 Year
After-sales Service Provided
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Key Selling Points
Automatic
Brick size
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, Other, 400*200*200 mm, 230*220*115 mm
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Marketing Type
Hot Product 2019
Warranty of core components
1.5 years
Core Components
PLC, Pressure vessel, Other, Engine, Gear, Motor, Pump, Bearing, Gearbox
Model
QT4-28
Block Type
Hollow Solid Paver Block Curbstone
Weight
3200kg
Power
22kw
Pallet size
850*550*20mm
Forming cycle
25~30s
Daily Capacity
3000-15000blocks/day
Vibrating Force
50KN
Worker
3-4 Person
Area
2000m2
Video Description

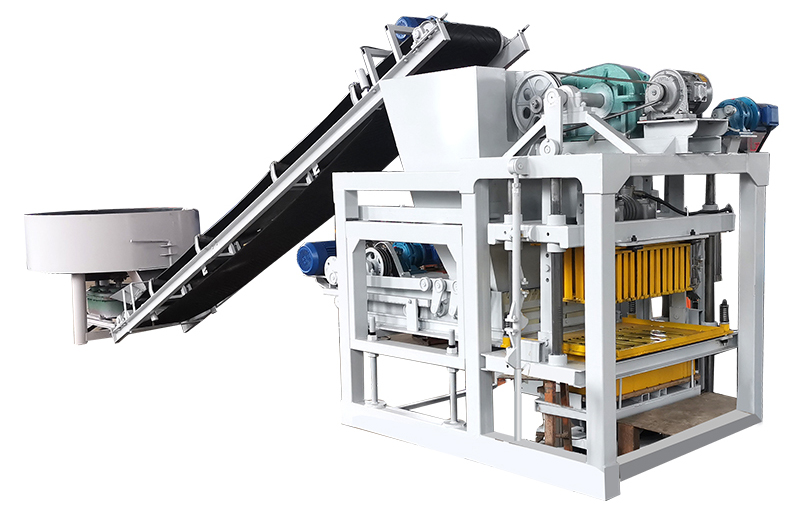

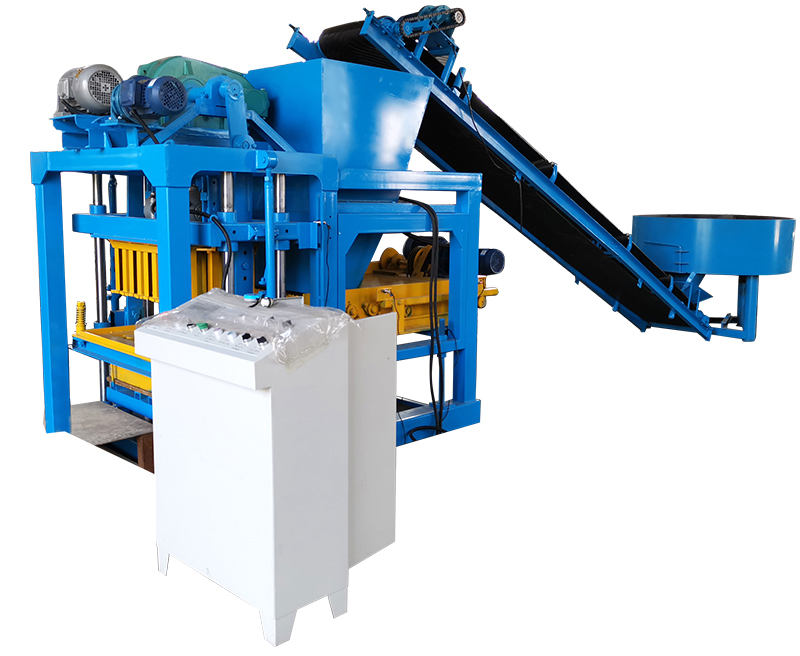

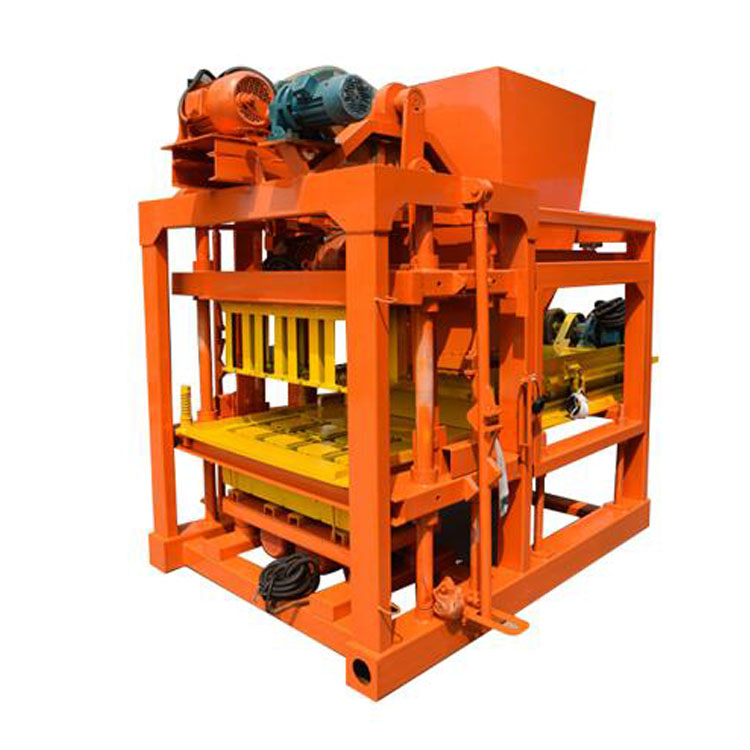

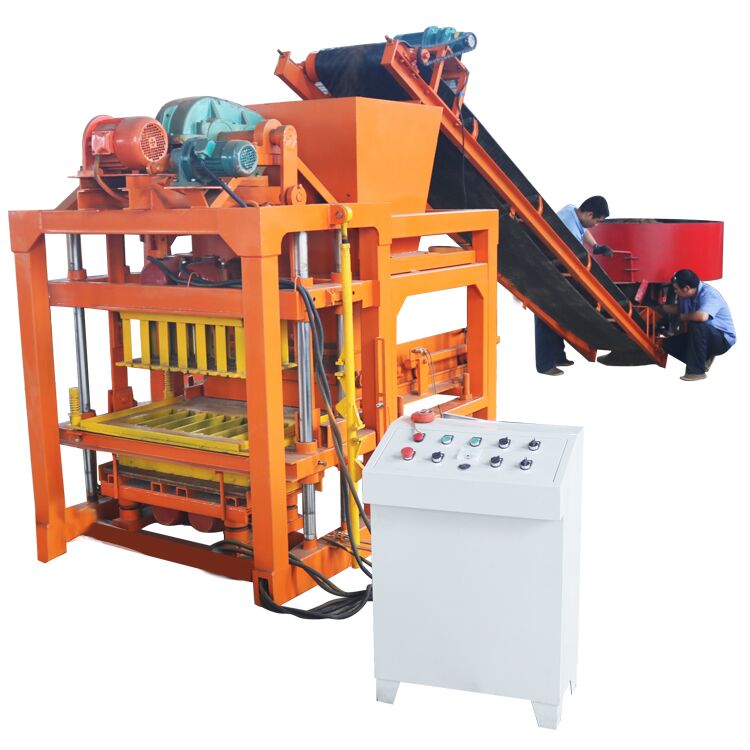

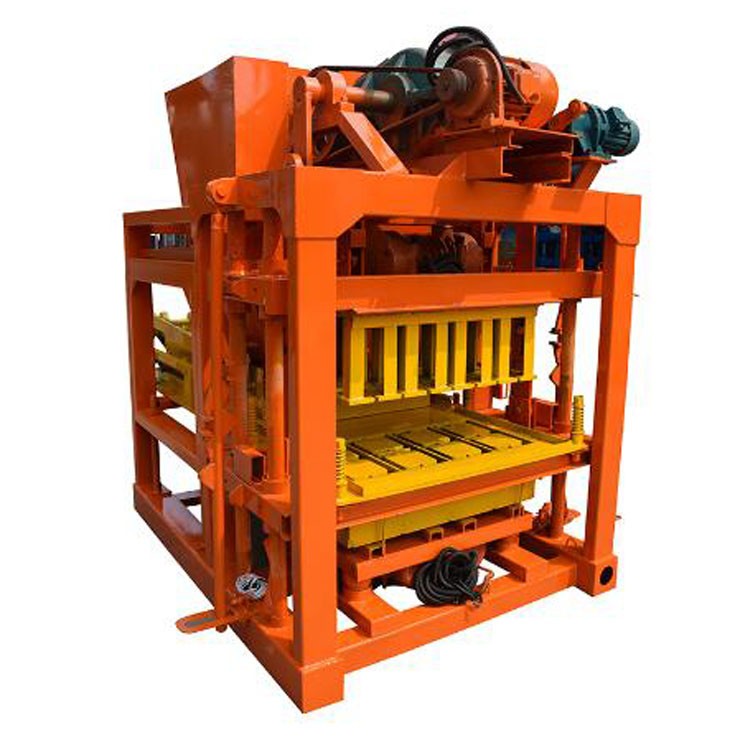

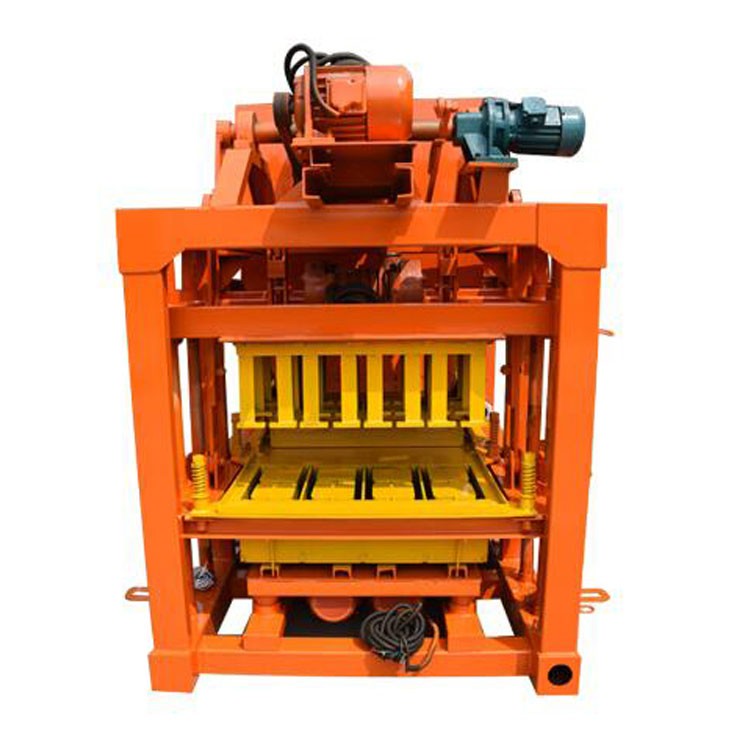

Product Description
Advantage:
full automatic (just need to press one button,the block will be formed )and output is big. the machine equip with PLC,
easy to operate.the control box is very easy to operate.

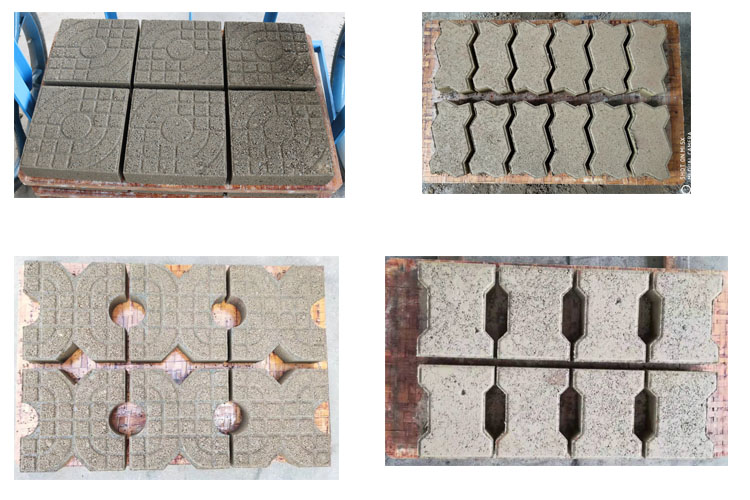

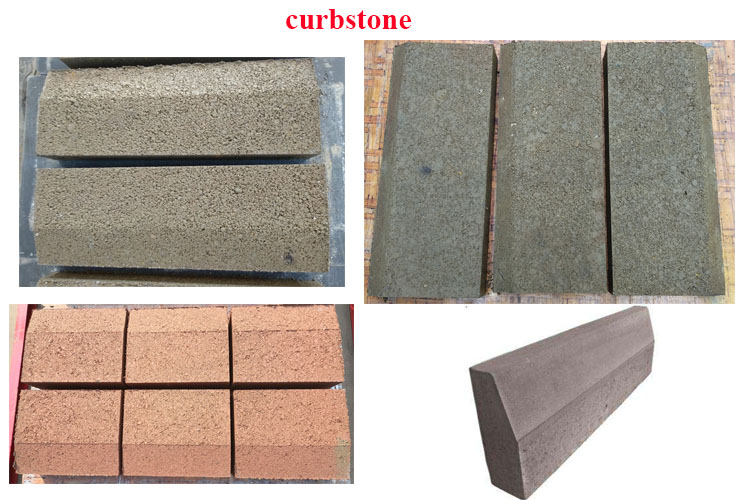

suitable make hollow solid block ,pavement block,curbstone.
material can be easy find all over the world .
material:cement ,concrete ,sand ,flyash ,construction waste.coal gangue,slag,mountain flour.
Ratio of raw material:cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5.

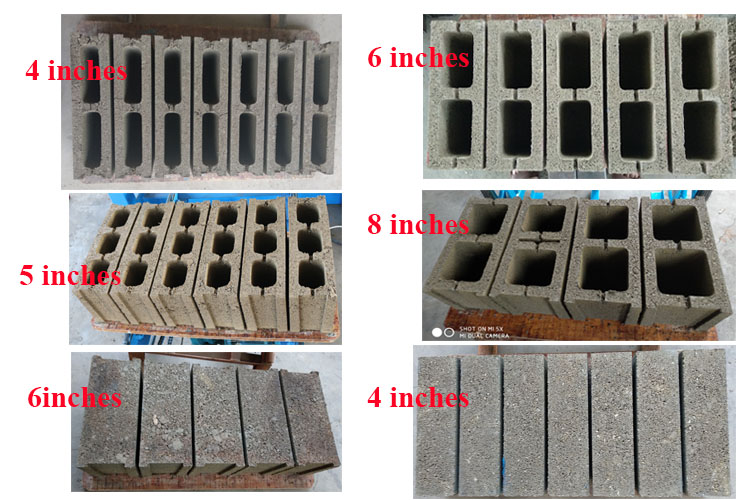

hollow block weight:(400*200*200) :17KG,(400*150*200):13.5KG,(400*100*200):10KG

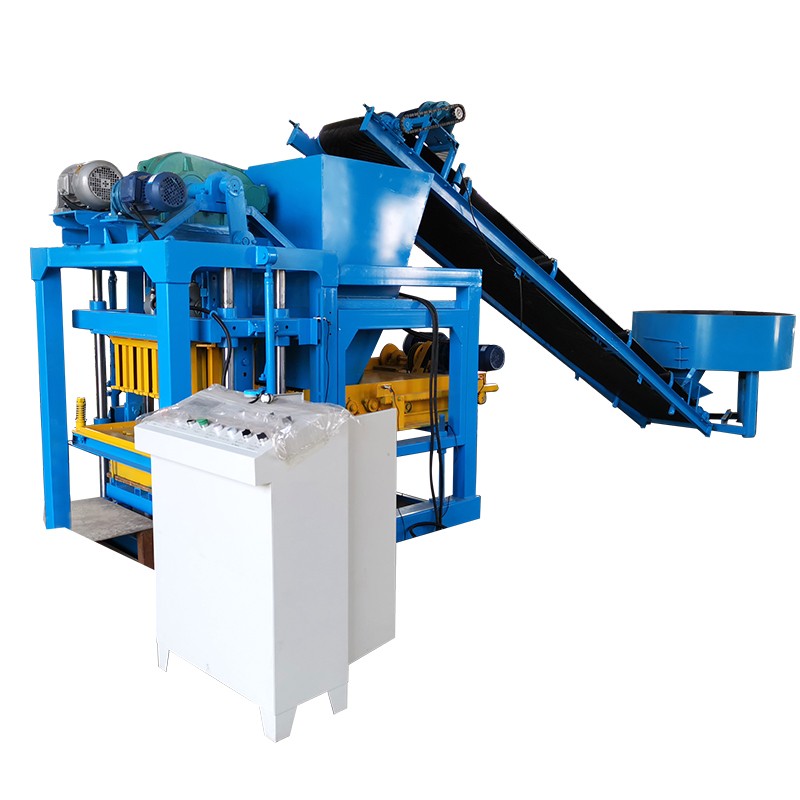

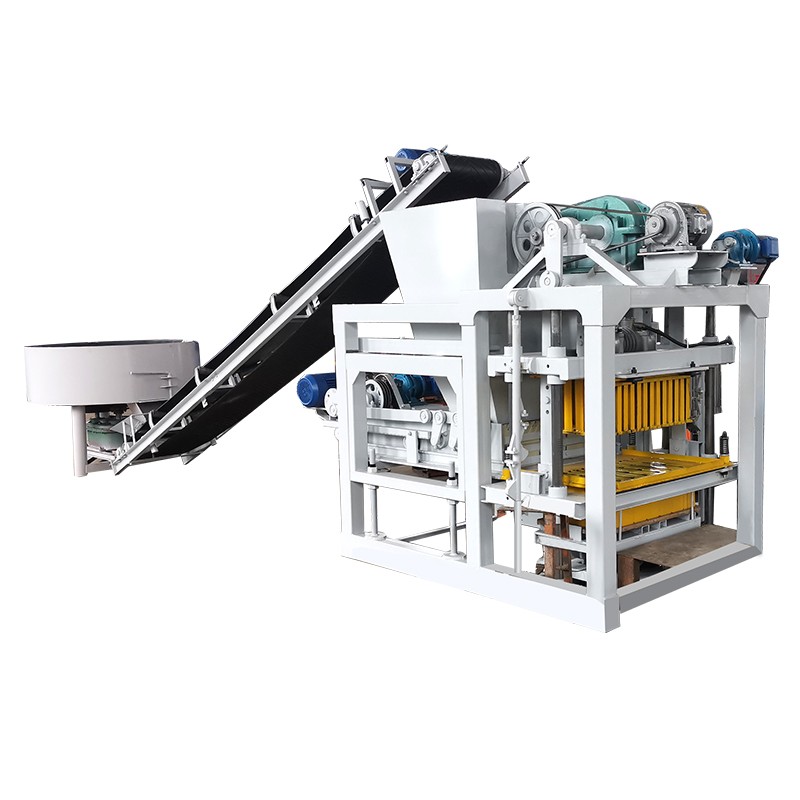

QTJ4-28 Semi Automatic Block Production Line Main Parameter
Model
QTJ4-28
Weight
3200kg
Forming cycle
28-35S
QTJ4-28 Semi Automatic Block Production Line Base Installation
Area
2000m2
workshop
80m2
Raw Material Work Shop
300m2
Office
50m2
Staff And Workers
2-4 person
Power Distribution
22kw
Water Consumption
4T per day
Pallets need
1000pcs
QTJ4-28 Semi Automatic Block Production Line Capacity
Size(LxWxH)
Pcs/Mould
Pcs/hour
Pcs/ 8 Hr
400X150X200
5
600
4800
400X200X200
4
480
3840
400X100X200
7
840
6720
400X240X190
3
360
2880
240X115X52
21
2520
20160

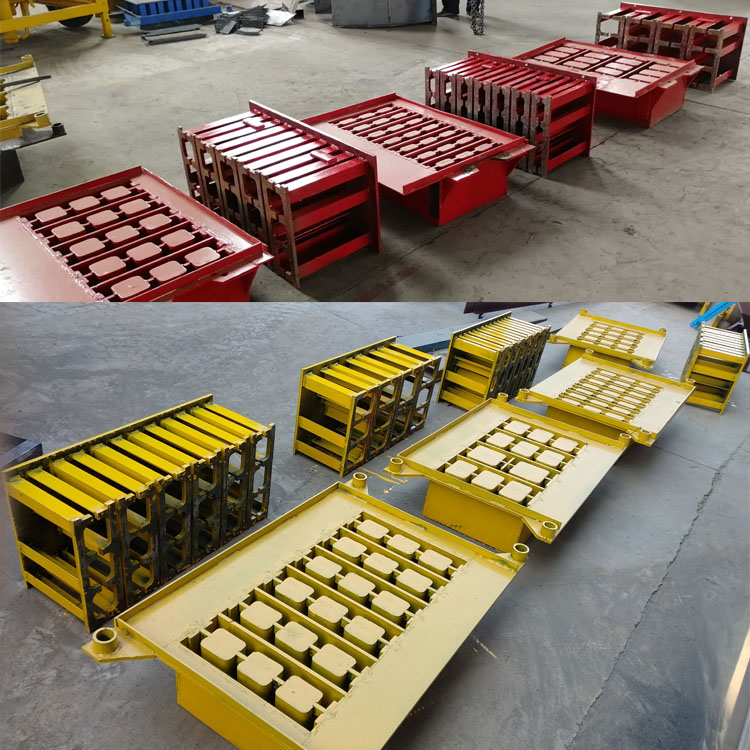

We can also design the moulds for your requirement

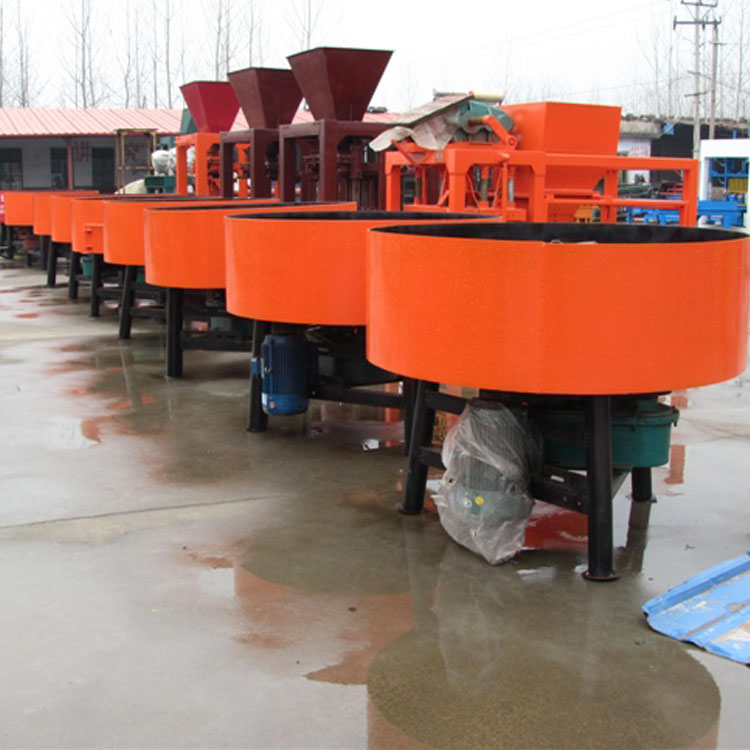

JQ500Mixer
Feeding Capacity
600L
Discharging Capacity
500L
Deepth
0.5m
Motor Power
7.5kw
Overall Size
1500L*1500W*1300Hmm
Diameter
1500mm
Reducer
350
Weight
800kg
Our Services
Pre-sale Service:
Analyze the customer's need and market prospect; Provide perfect solution to set up a factory.
In-Sale Service: Provide service of installation in customers’ country; Provide training for operator and maintenance person.
After-sale Service: Provide free consultation; Supply parts service.

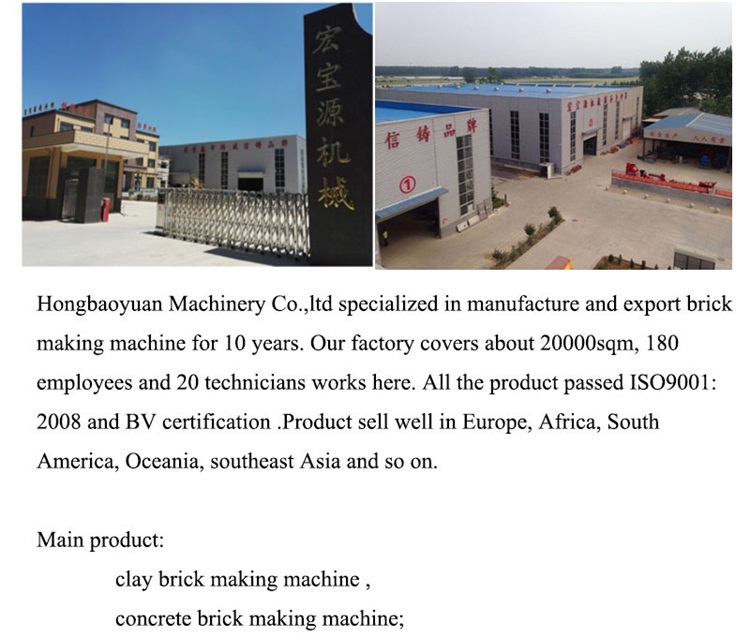

Company Information
