Overview
Quick Details
Applicable Industries
Machinery Repair Shops, Manufacturing Plant, Construction works
After Warranty Service
Video technical support, Online support, Spare parts, Field maintenance and repair service
Condition
New
Type
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine, Other
Brick Raw Material
CONCRETE
Processing
Brick Molding Machine
Method
Hydraulic pressure
Automatic
Yes
Production Capacity (Pieces/8 hours)
Other, 4480 pcs/8hours, 2500 pcs/8hours, 3400 pcs/8hours, 1920 pcs/8hours, 5760 pcs/8hours, 1500 pcs/8hours, 1280 pcs/8hours, 3000 pcs/8hours, 12000 pcs/8hours, 3200 pcs/8hours, 2560 pcs/8hours, 1000 pcs/8hours, 800 pcs/8hours
Place of Origin
Shandong, China
Brand Name
hongbaoyuan
Voltage
local voltage
Dimension(L*W*H)
3600(L)*1650(W)*2200(H)mm
Certification
CE/BV/ISO:9001
Warranty
1 Year
After-sales Service Provided
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Key Selling Points
Automatic
Brick size
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, Other, 400*200*200 mm, 230*220*115 mm
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Marketing Type
Hot Product 2019
Warranty of core components
1.5 years
Core Components
PLC, Pressure vessel, Other, Engine, Gear, Motor, Pump, Bearing, Gearbox
Model
QT4-25D
Block Type
Hollow Solid Paver Block Curbstone
Weight
4200kg
Power
17.9kw
Pallet size
850*550*20mm
Forming cycle
25~30s
Daily Capacity
5760 pcs/8hours
Vibrating Force
50KN
Worker
3-4 Person
Area
2000m2
Video Description

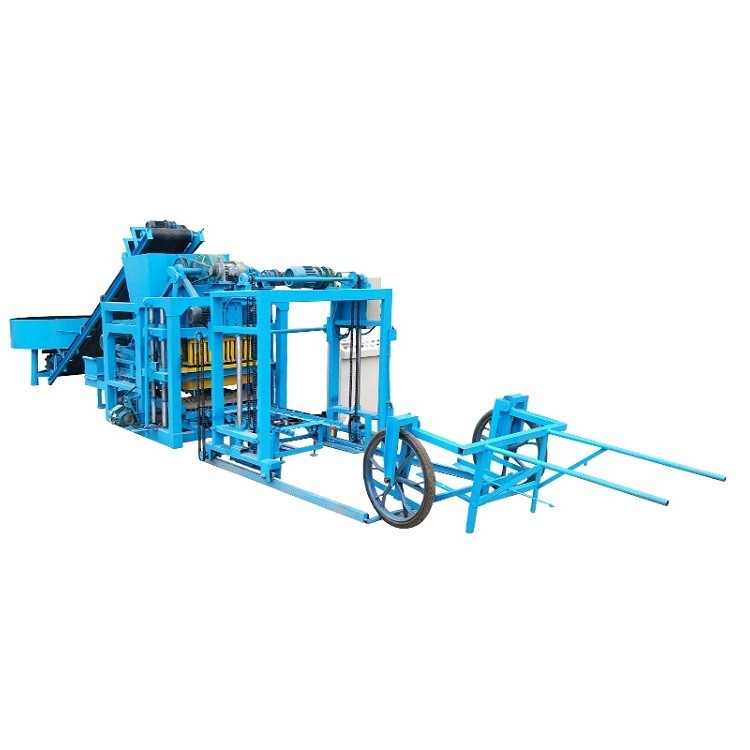

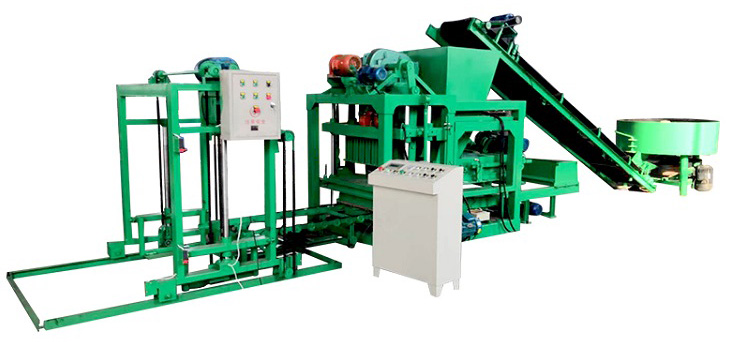

Product Description
Advantage:

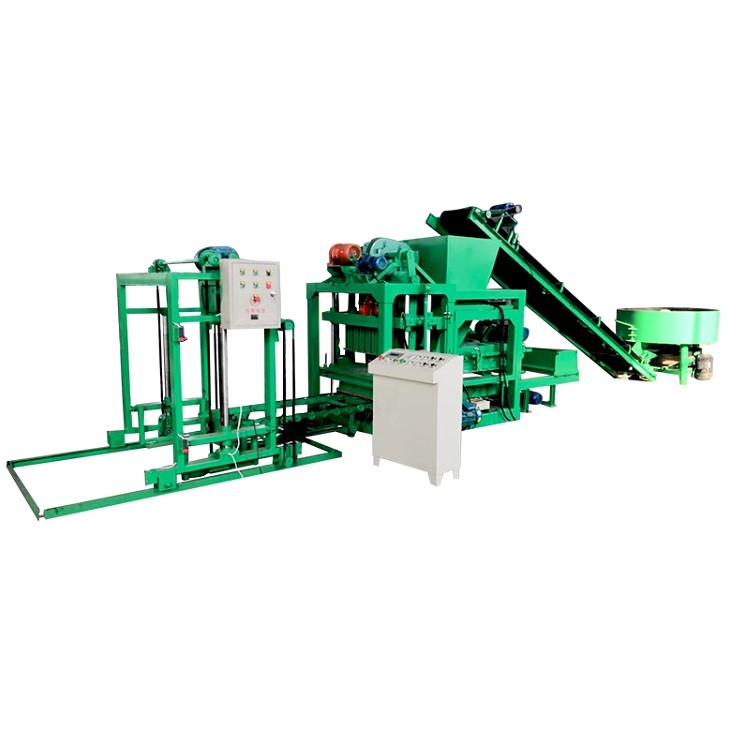

full automatic and output is big. the machine equip with PLC,
easy to operate.the control box is very easy to operate.

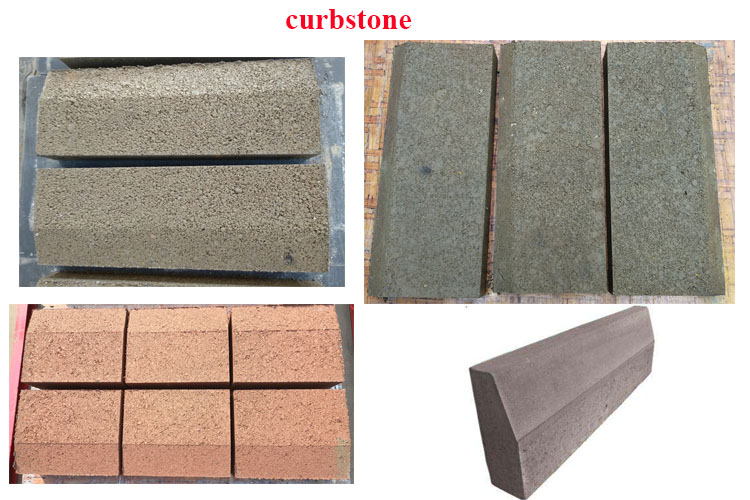

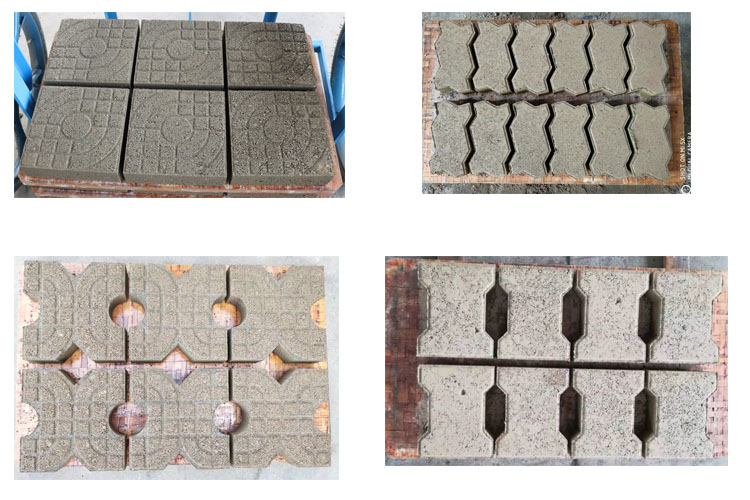

suitable make hollow solid block ,pavement block,curbstone.
material can be easy find all over the world .
material:cement ,concrete ,sand ,flyash ,
Ratio of raw material:cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5.

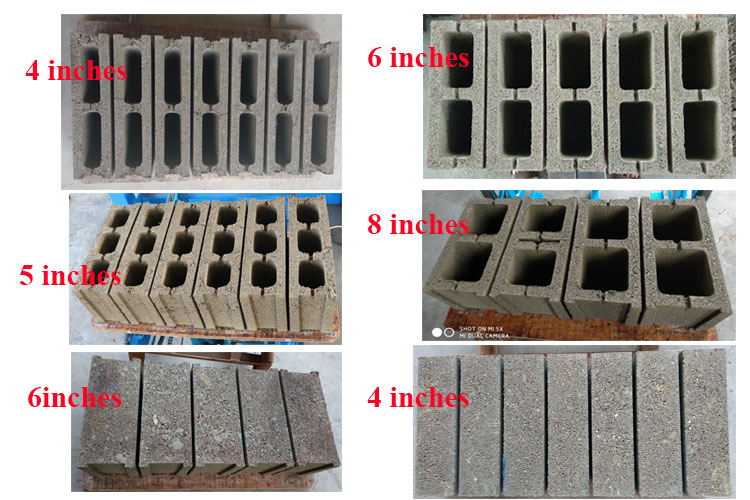

hollow block weight:(400*200*200) :17KG,(400*150*200):13.5KG,(400*100*200):10KG

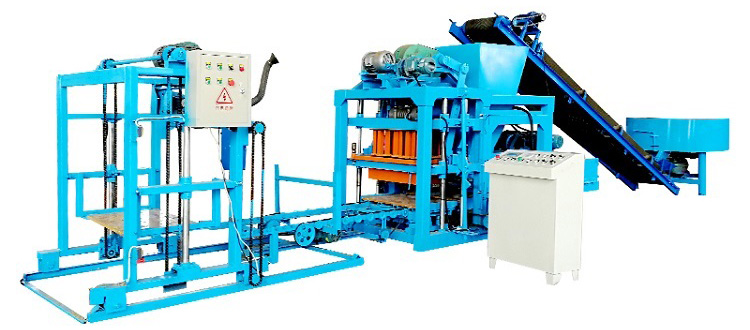

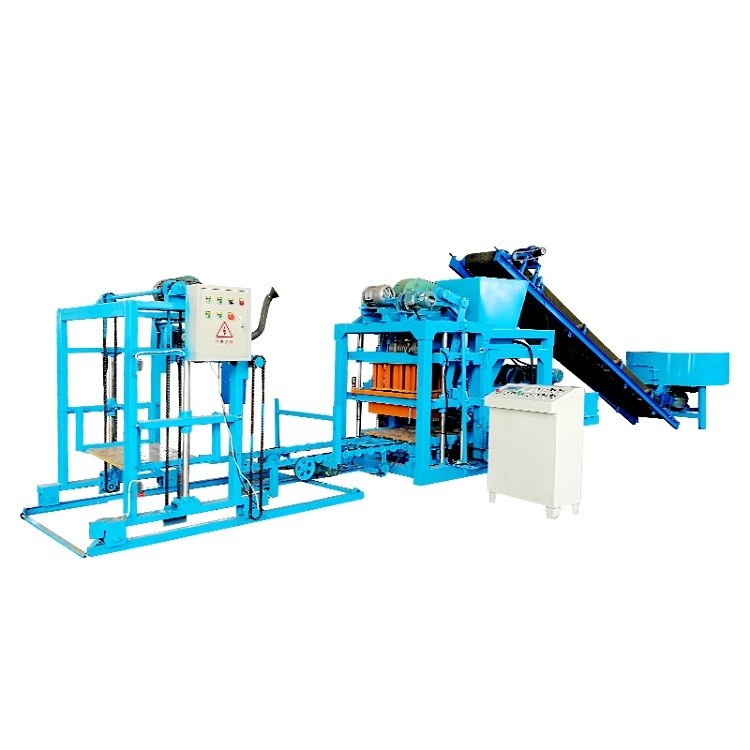

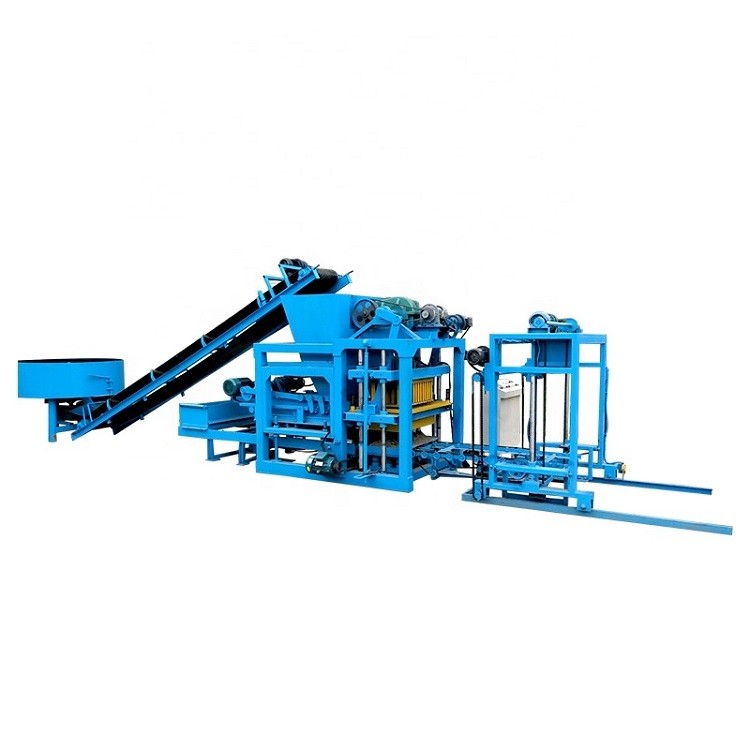

QTJ4-25D Block Making Machine Main Parameter
Model
QTJ4-25D
Weight
4200kg
Forming cycle
20-25S
QTJ4-25D Concrete Block Production Line Production Capacity
Brick size

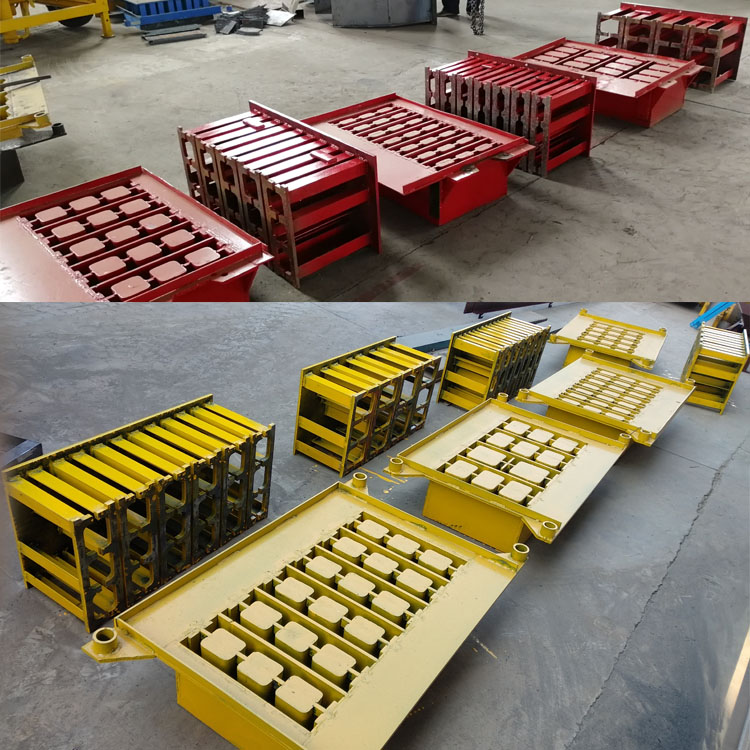

Pcs/mould
Pcs/hour
Pcs/8hour
240*115*52mm
26
4680
37440
390*190*190mm
4
720
5760
240*115*90mm
12
2160
17280

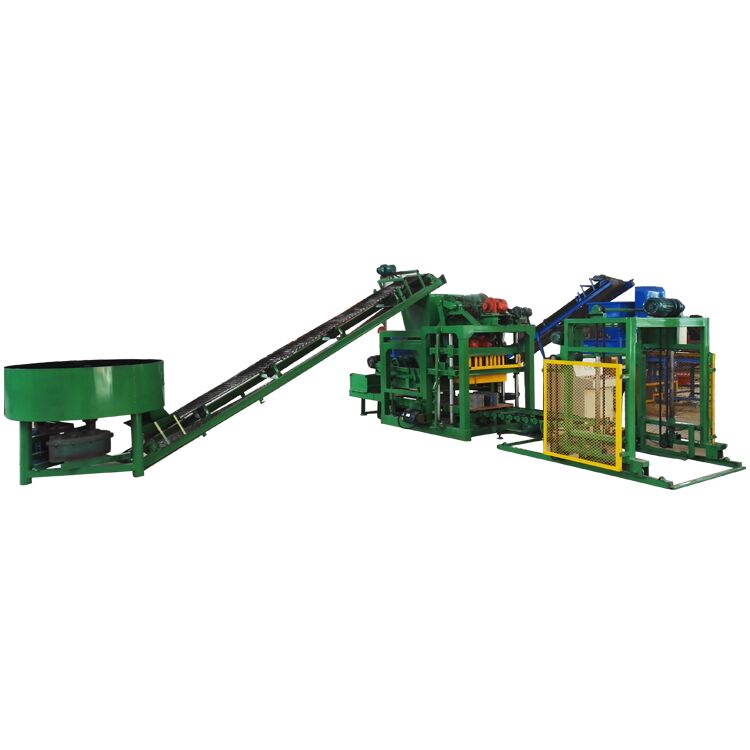

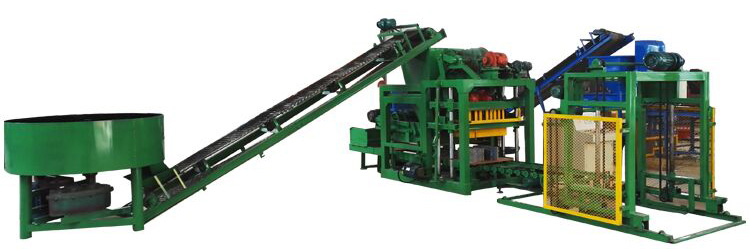

QTJ4-25D Concrete Block Production Line Base Installation
Area
2000m2
Workshop
50m2
Raw Material Work Shop
300m2
Office
30m2
Staff And Workers
3-4 person
Power Distribution
25kw
Water Consumption
4T per day
Pallets need
1200pcs

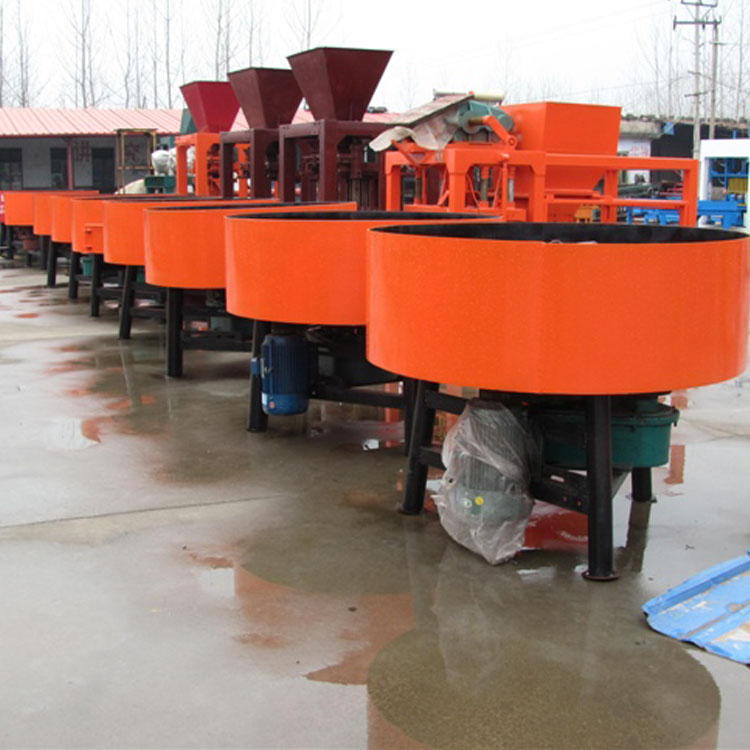

JQ500Mixer
Feeding Capacity
600L
Discharging Capacity
500L
Deepth
0.5m
Motor Power
7.5kw
Overall Size
1500L*1500W*1300Hmm
Diameter
1500mm
Reducer
350
Weight
800kg
Our Services
Pre-sale Service: Analyze the customer's need and market prospect; Provide perfect solution to set up a factory.
In-Sale Service: Provide service of installation in customers’ country; Provide training for operator and maintenance person.
After-sale Service: Provide free consultation; Supply parts service.

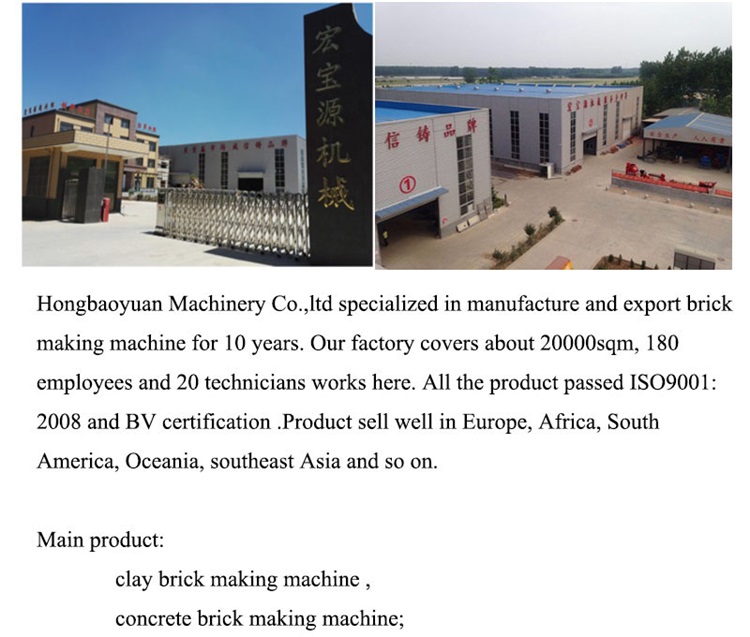

Company Information
