name: Large Capacity Interlocking Brick Making Machine Line
date: 2021-06-06 21:55:13
view: 746
about:

　 Tancheng County Hongbaoyuan Machinery Co., Ltd. is located on Shandong Province and North part of Jiangsu Province, where it is close to the Express Way from Beijing to Shanghai. and only 5 Km to the north from our Factory is Matuo Township of Tancheng Co...

0539 8309839

hyb@hongbaoyuan.net

DETAIL

Overview

Quick Details

After Warranty Service	Video technical support, Online support, Spare parts, Field maintenance and repair service
Type	Paving Brick Making Machine, Interlock Brick Making Machine,
Processing	Brick Molding Machine
Method	Hydraulic pressure
Automatic	Yes
Place of Origin	Shandong, China
Brand Name	hongbaoyuan
Voltage	3phase local voltage
Dimension(LWH)	2260x2200x2380mm
Certification	CE/BV/ISO:9001
Warranty	1 Year
Key Selling Points	Automatic
Brick size	20010060 mm, 300150100 mm,24011590 mm, 20020060 mm, 150150100 mm, 230220115 mm
Marketing Type	Hot Product 2019
Warranty of core components	1 Year
Core Components	PLC, Pressure vessel, Other, Engine, Gear, Motor, Pump, Bearing, Gearbox
Model	HBY7-10
Block Type	interlocking brick
Weight	3200kg
Power	22KW
Forming cycle	7-10s
Daily Capacity	18000-22000blocks/day
Pressure	100-180ton
Worker	6-7Person
Area	2000m2
Material	Clay Mud Earth Soil

Video Description

Product Description

Advantage:

1.can make 7pcs bricks per mould, can make more than 20000pcs in 8hours, so the production capacity is very high, suitable for the customers who want a big capacity.

2. is an automatic hydraulic brick machine which is controlled by PLC, so the machine can be easily operated by only one person.
3. uses a electric motor to drag the gear pump, double oil cylinders, the hydraulic pressure can reach 35Mpa, which can can ensure the brick density very high and brick quality very strong.
4. Mould can be changed according to customer’s requirements.

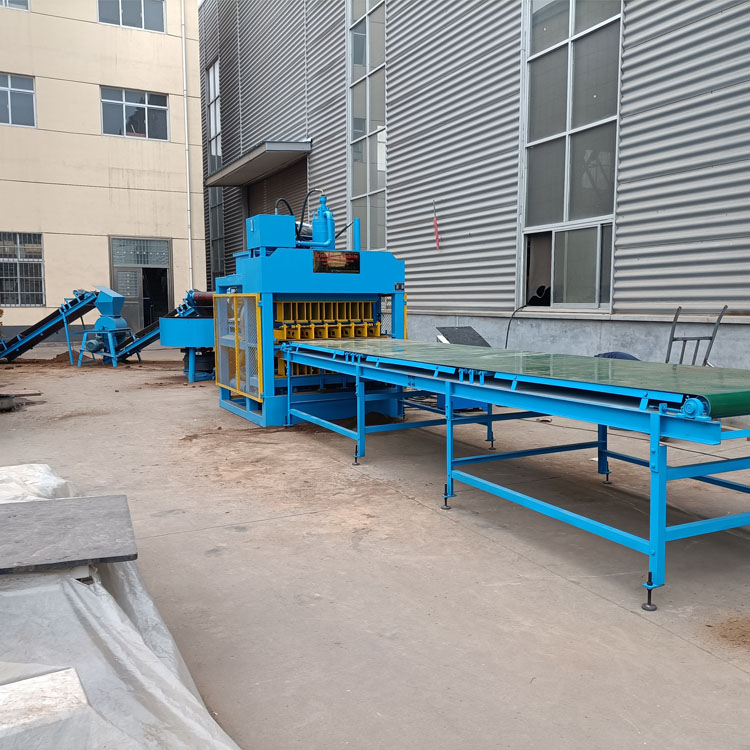

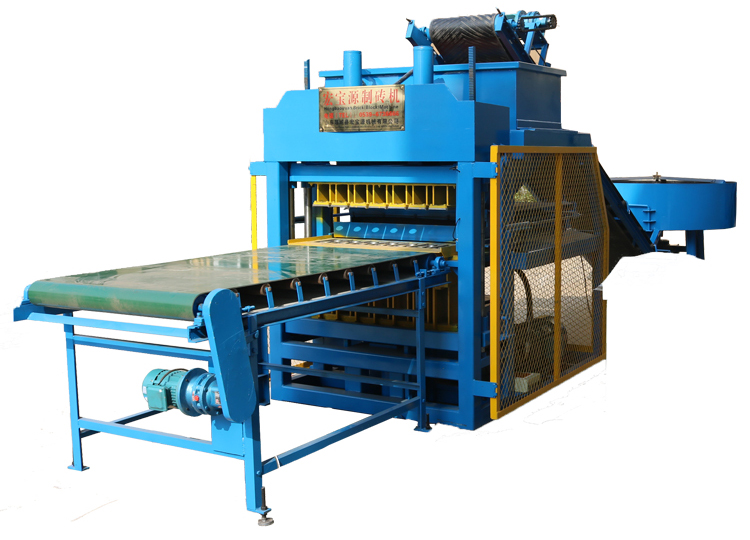

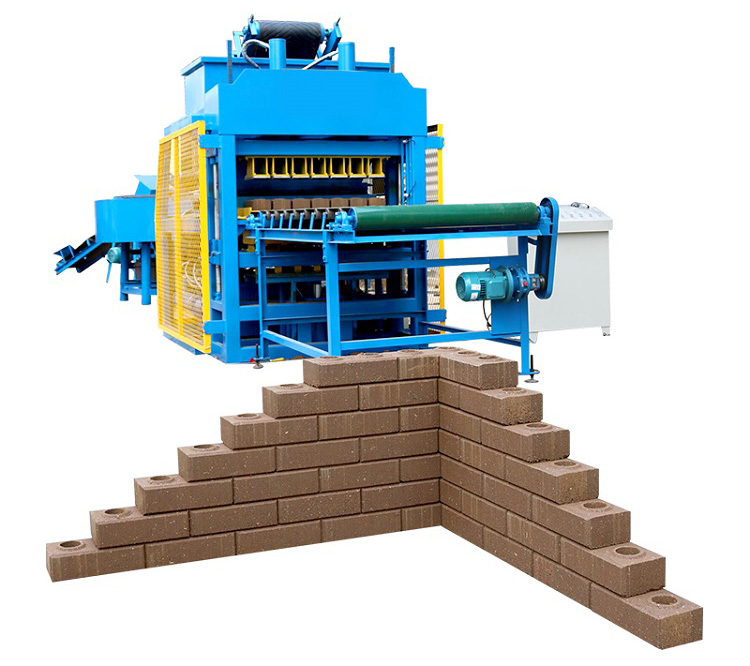

Full Automatic Clay Lego Brick Making Molding Machines Pavement Block Machine Sale(图1)

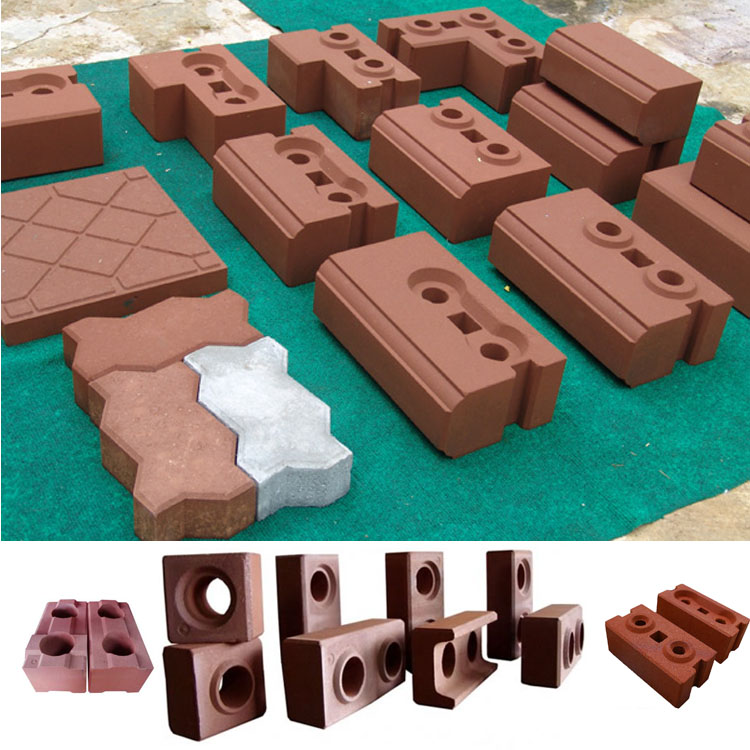

Full Automatic Clay Lego Brick Making Molding Machines Pavement Block Machine Sale(图2)

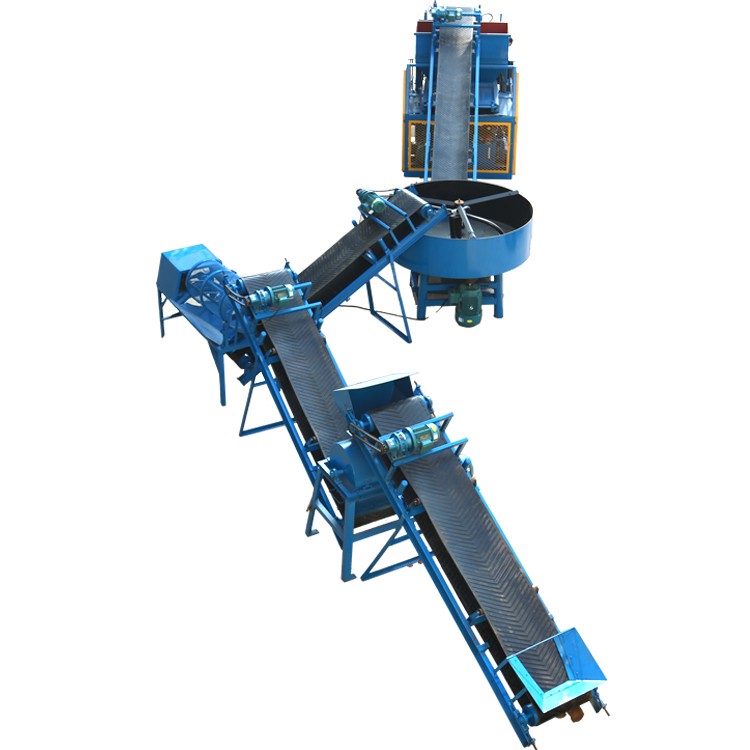

Full Automatic Clay Lego Brick Making Molding Machines Pavement Block Machine Sale(图3)

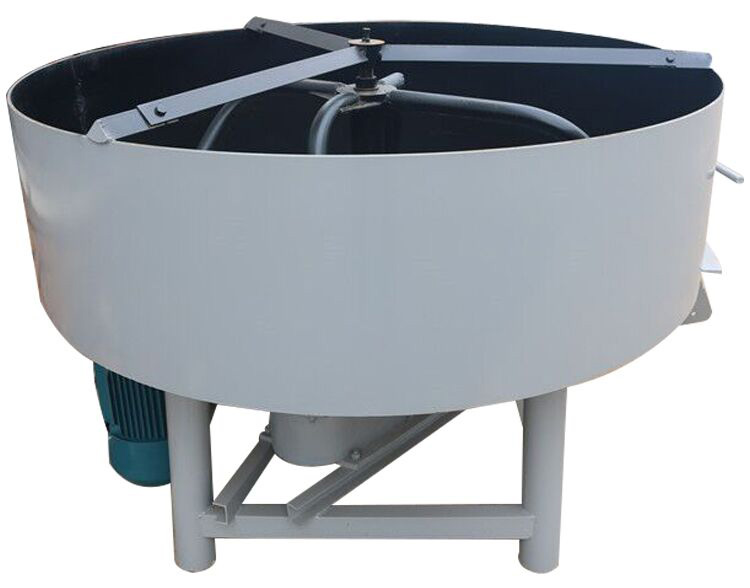

Full Automatic Clay Lego Brick Making Molding Machines Pavement Block Machine Sale(图4)

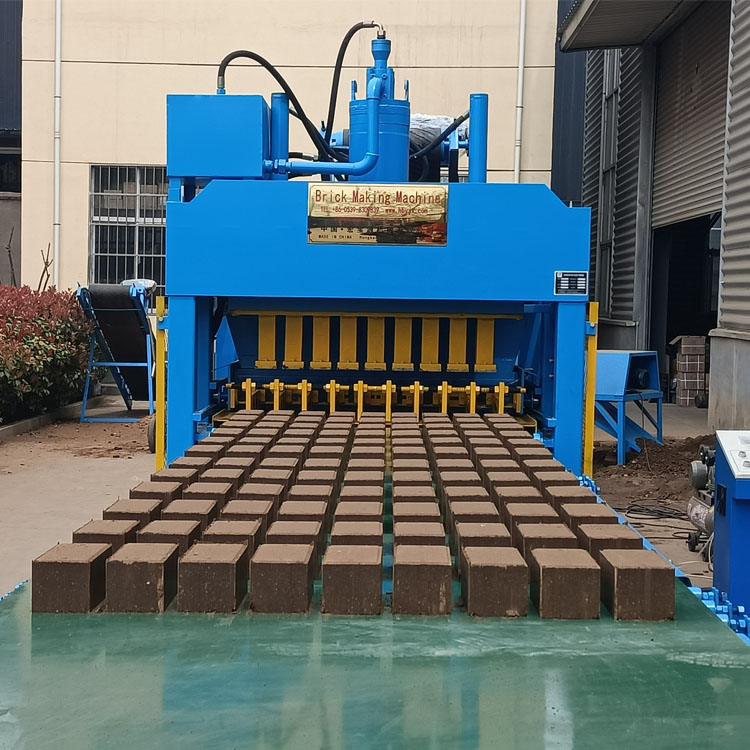

HBY7-10 Clay Brick Making Machine Main Parameter

Model	HBY7-10	Pressure	15-22Mpa
Power	22KW	Total weight	3200kg
Moulding Time	7-10s	Overall size	2260x2200x2380mm

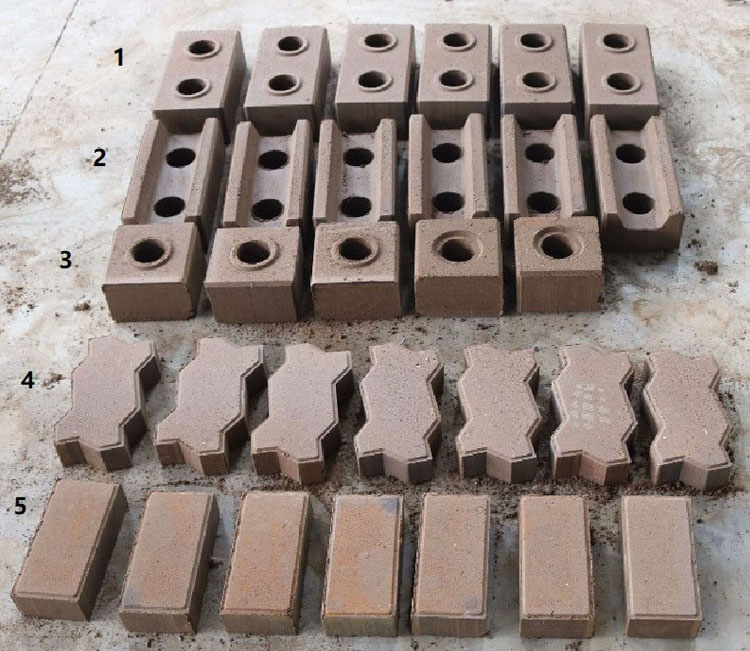

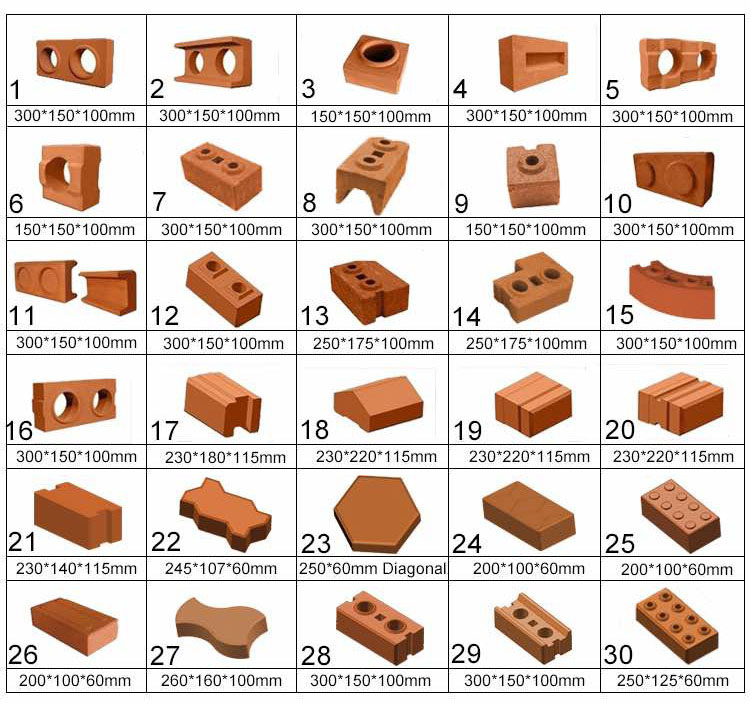

HBY7-10 SUPER Interlocking Brick Machine Production Capacity

Size(LxWxH)	Pcs/Mould	Pcs/hour	Pcs/10 Hr
A BRICK(300x150x100)	6	1800-2160	18000-21600
B BRICK(300x150x100)	6	1800-2160	18000-21600
C BRICK(150x150x100)	12	3600-4320	36000-43200
	7	1900-2500	19000-25000
Paver brick(200x100x60)	9	2450-3200	24500-32000
Paver brick(225x112.5x60)	7	1900-2500	19000-25000

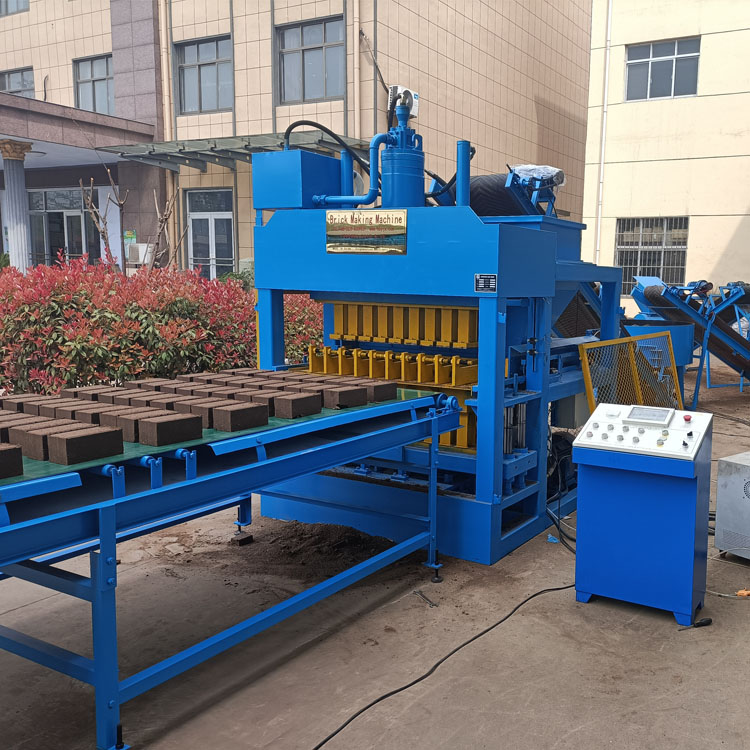

Full Automatic Clay Lego Brick Making Molding Machines Pavement Block Machine Sale(图5)

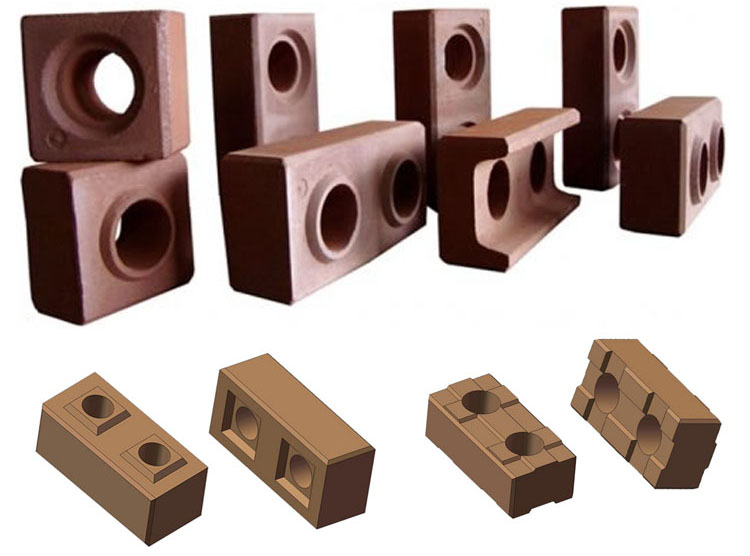

Full Automatic Clay Lego Brick Making Molding Machines Pavement Block Machine Sale(图6)

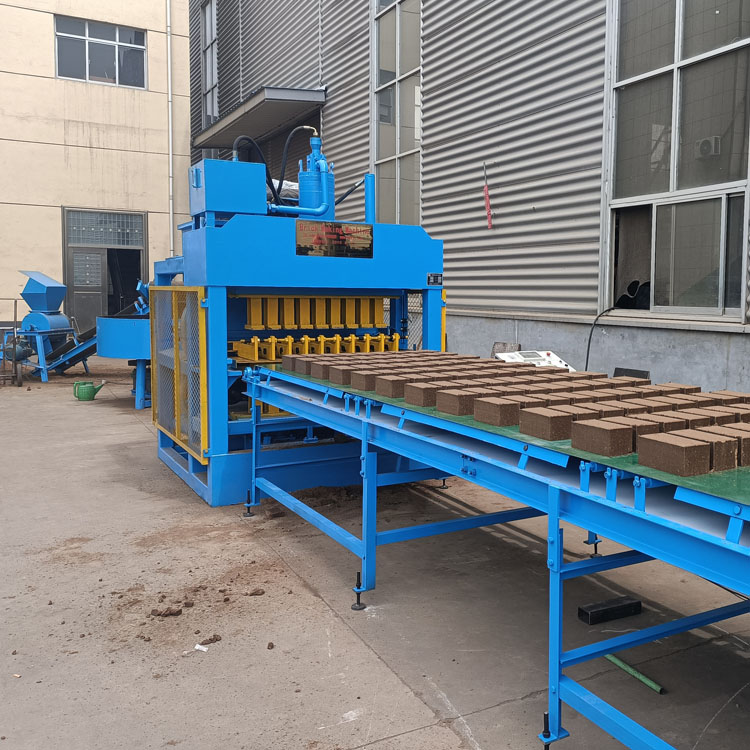

Full Automatic Clay Lego Brick Making Molding Machines Pavement Block Machine Sale(图7)

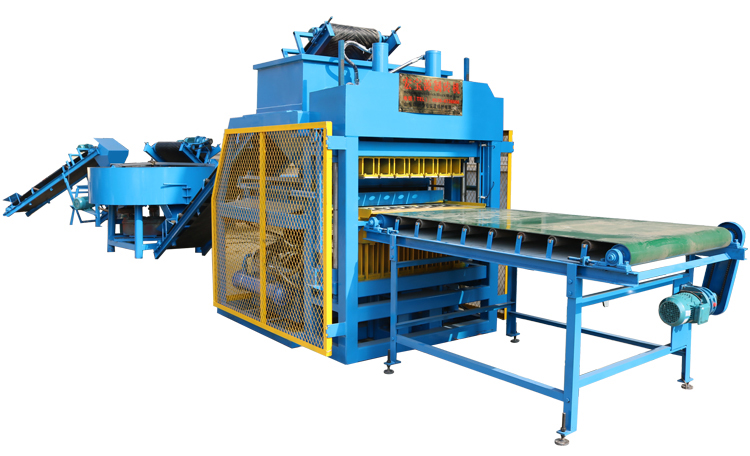

Full Automatic Clay Lego Brick Making Molding Machines Pavement Block Machine Sale(图8)

Full Automatic Clay Lego Brick Making Molding Machines Pavement Block Machine Sale(图9)

Full Automatic Clay Lego Brick Making Molding Machines Pavement Block Machine Sale(图10)

Full Automatic Clay Lego Brick Making Molding Machines Pavement Block Machine Sale(图11)

Full Automatic Clay Lego Brick Making Molding Machines Pavement Block Machine Sale(图12)

Full Automatic Clay Lego Brick Making Molding Machines Pavement Block Machine Sale(图13)

Full Automatic Clay Lego Brick Making Molding Machines Pavement Block Machine Sale(图14)

Full Automatic Clay Lego Brick Making Molding Machines Pavement Block Machine Sale(图15)

Our Services

Pre-sale Service:

Analyze the customer's need and market prospect;
Provide perfect solution to set up a factory.

In-Sale Service:
Provide service of installation in customers’ country;
Provide training for operator and maintenance person.

After-sale Service:
Provide free consultation;
Supply parts service.

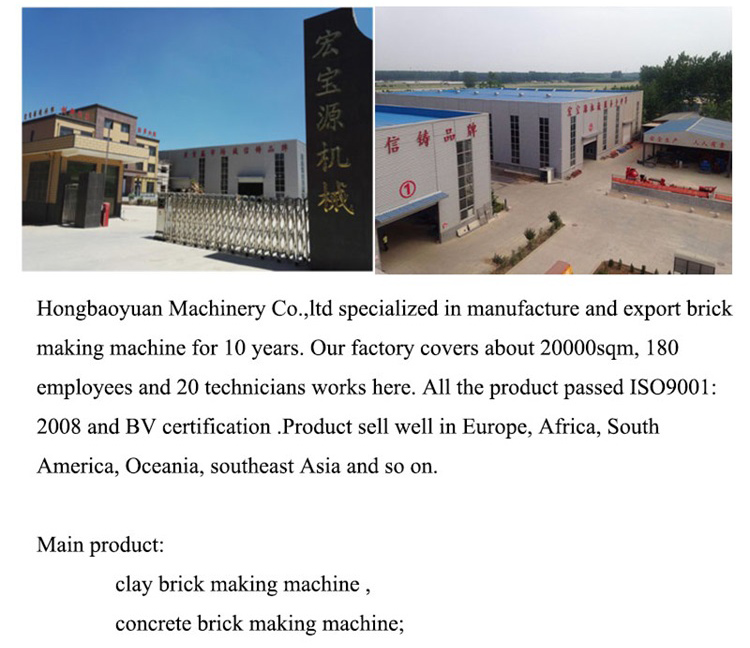

Company Information
