Overview
Quick Details
Applicable Industries | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works
|
After Warranty Service | Video technical support, Online support, Spare parts, Field maintenance and repair service |
Condition | New |
Type | Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine, Other |
Brick Raw Material | Clay |
Processing | Brick Molding Machine |
Method | Hydraulic pressure |
Automatic | Yes |
Production Capacity (Pieces/8 hours) | Other, 4480 pcs/8hours, 2500 pcs/8hours, 3400 pcs/8hours, 1920 pcs/8hours, 5760 pcs/8hours, 1500 pcs/8hours, 1280 pcs/8hours, 3000 pcs/8hours, 12000 pcs/8hours, 3200 pcs/8hours, 2560 pcs/8hours, 1000 pcs/8hours, 800 pcs/8hours, 10000-20000blocks/day |
Place of Origin | Shandong, China |
Brand Name | hongbaoyuan |
Voltage | local voltage |
Dimension(L*W*H) | 1600(L)x1400(W)x2100(H)mm |
Certification | CE/BV/ISO:9001 |
Warranty | 1 Year |
After-sales Service Provided | Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support |
Key Selling Points | Automatic |

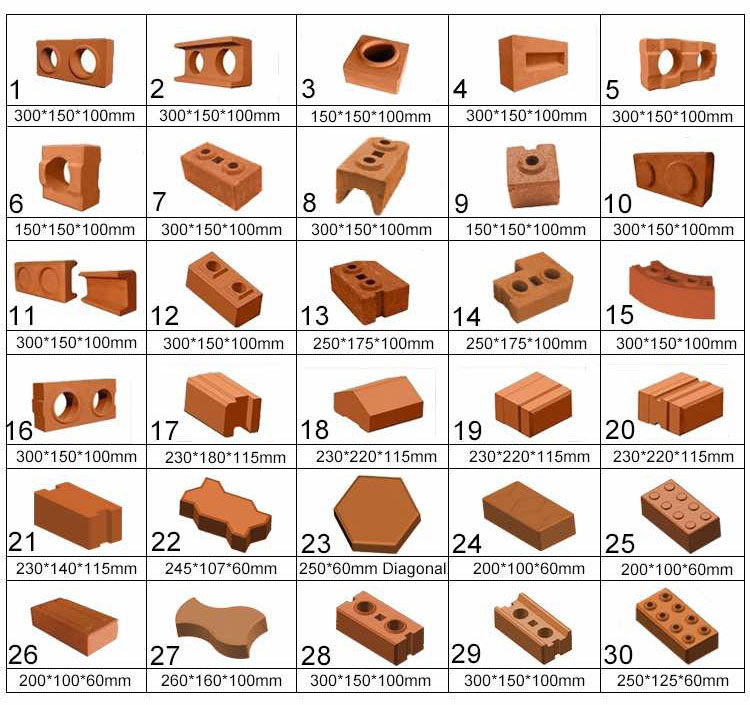

Brick size | 400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, Other, 400*200*200 mm, 230*220*115 mm |
Machinery Test Repor | Provided |
Marketing Type | Hot Product 2019 |
Warranty of core components | 1 Year |
Core Components | PLC, Pressure vessel, Other, Engine, Gear, Motor, Pump, Bearing, Gearbox |
Model | HBY4-10 |
Block Type | interlocking brick |
Weight | 1600kg |
Power | 15KW |
Forming cycle | 7-10s |
Daily Capacity | 10000-20000blocks/day |
Pressure | 100-150ton |
Worker | 6-7Person |
Area | 2000m2 |
Material | Clay Mud Earth Soil |
Product Description
Advantage:
full automatic and output is big
widely used in Africa ,South America ,Southeast Asia,Russia,etc.
high quality ,very reliable,it can be used for 5-7years.all customer like it.

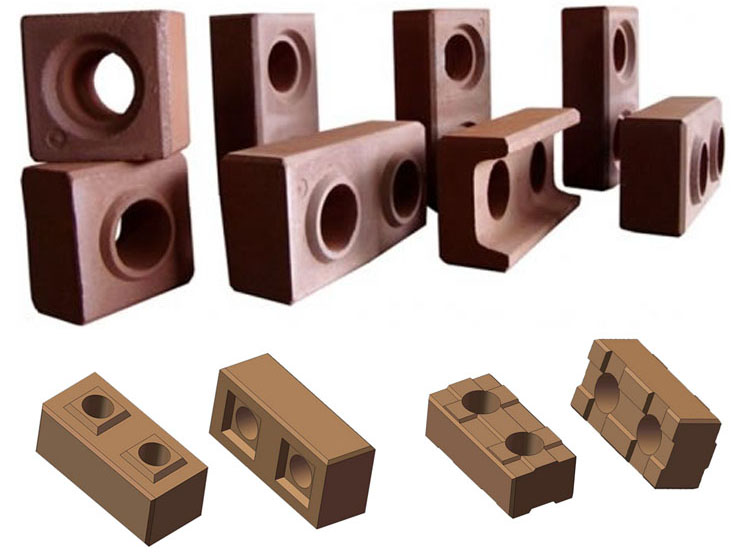

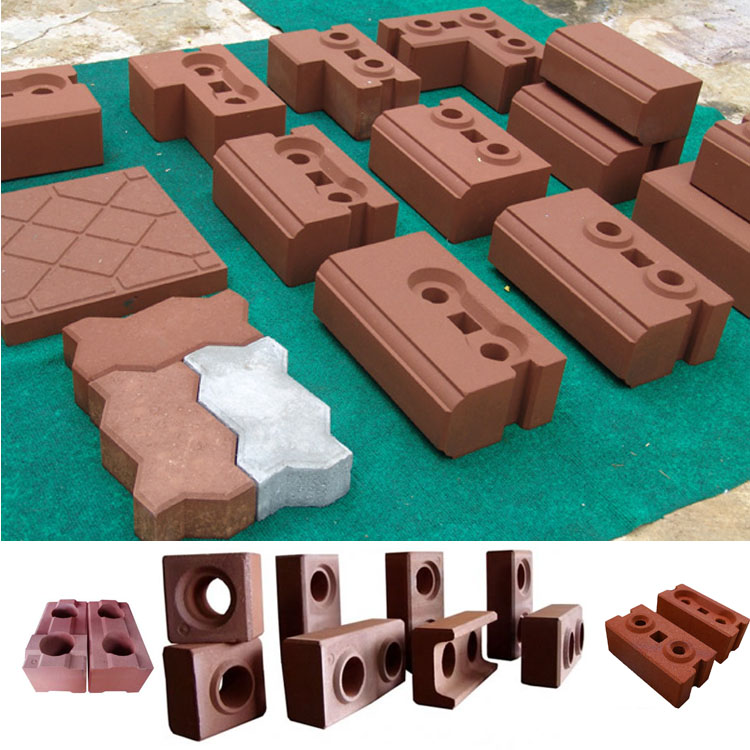

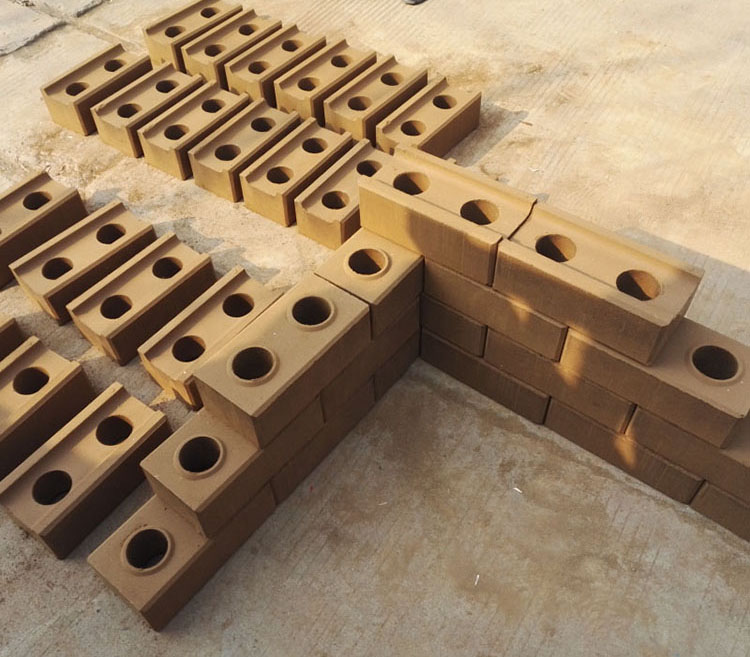

suitable make interlocking soil brick ,soil pavement brick ,etc.
bricks are high quality ,hydraulic cylinder pressure is big,usually be 100-150ton,so the bricks quality is very high.
material:clay ,mud ,erath soil ,cement,water.
Ratio of raw material:cement 6%-8%,clay 80%-90% water:3%,about cement :clay : water is 2:30:1.

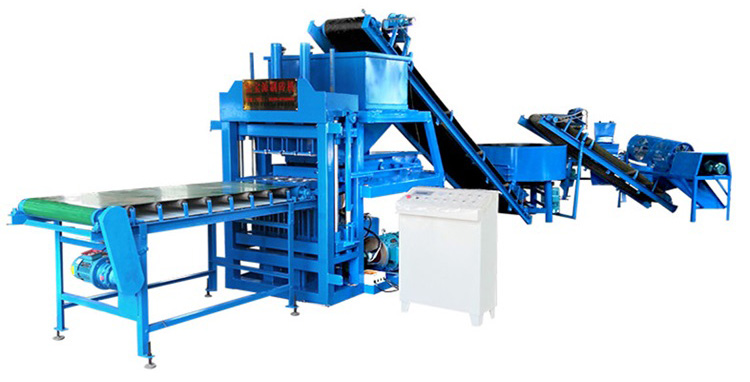

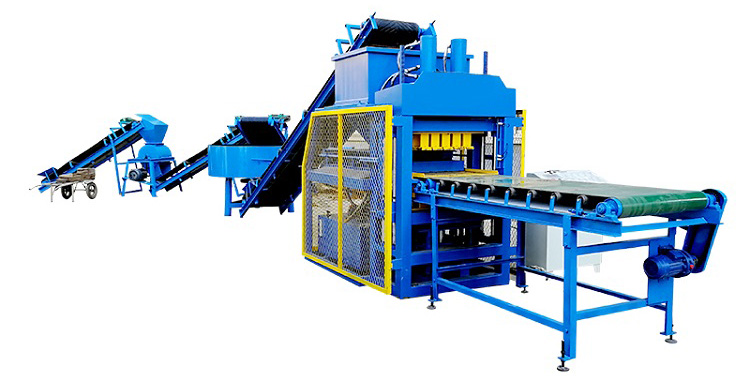

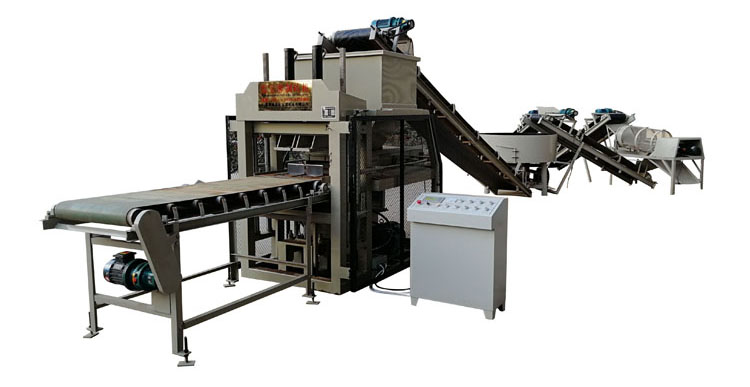

HBY4-10 Clay Brick Making Machine Main Parameter
Model | HBY4-10 | Pressure | 15-22Mpa |
Power | 15KW | Total weight | 1600kg |
Moulding Time | 7-10s | Overall size | 1600(L)×1400(W)×2100(H)mm |
HBY4-10 Clay Brick Making Machine Production Capacity

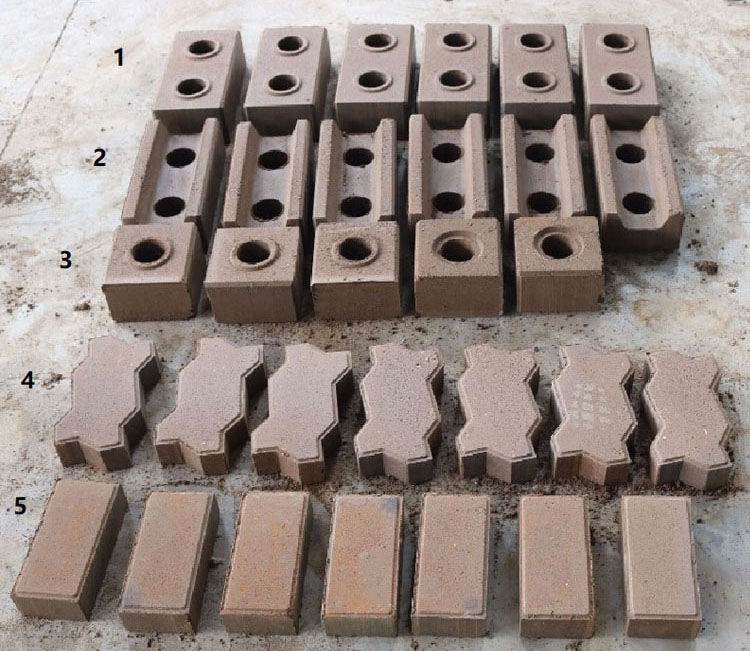

Size(LxWxH) | Pcs/Mould | Pcs/hour | Pcs/ 8 Hr |
1.BRICK(300x150x100) | 4 | 1440-2050 | 11520-16450 |
2.Brick(250x125x100mm) | 5 | 1800-2500 | 14400-20000 |
3.Brick(125x125x100mm) | 10 | 3600-5000 | 28800-40000 |
4.BRICK(150x150x100) | 8 | 2880-4100 | 23040-32900 |
5.interlocking block (220x220x115mm) | 3 | 1100-1530 | 8800-12300 |
JQ500Mixer
Feeding Capacity | 600L | Discharging Capacity | 500L |
Deepth | 0.5m | Motor Power | 7.5kw |
Overall Size | 1500L*1500W*1300Hmm | Diameter | 1500mm |
Reducer | 350 | Weight | 800kg |
Our Services
Pre-sale Service:
Analyze the customer's need and market prospect;
Provide perfect solution to set up a factory.
In-Sale Service:
Provide service of installation in customers’ country;
Provide training for operator and maintenance person.
After-sale Service:
Provide free consultation;
Supply parts service.

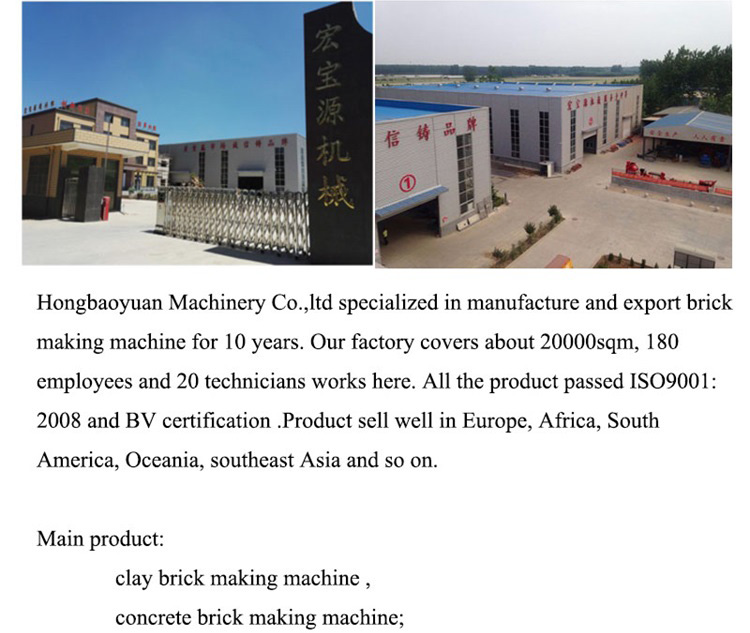

Company Information
