Overview
Quick Details
Applicable Industries
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works
After Warranty Service
Video technical support, Online support, Spare parts, Field maintenance and repair service
Condition
New
Type
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine, Other
Brick Raw Material
Clay
Processing
Brick Molding Machine
Method
Hydraulic pressure
Automatic
Yes
Production Capacity (Pieces/8 hours)
Other, 4480 pcs/8hours, 2500 pcs/8hours, 3400 pcs/8hours, 1920 pcs/8hours, 5760 pcs/8hours, 1500 pcs/8hours, 1280 pcs/8hours, 3000 pcs/8hours, 12000 pcs/8hours, 3200 pcs/8hours, 2560 pcs/8hours, 1000 pcs/8hours, 800 pcs/8hours, 6000-7000blocks/day
Place of Origin
Shandong, China
Brand Name
hongbaoyuan
Voltage
3phase local voltage
Dimension(L*W*H)
1600(L)x1000(W)x2100(H)mm
Certification
CE/BV/ISO:9001
Warranty
1 Year
After-sales Service Provided
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Key Selling Points
Automatic
Brick size
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, Other, 400*200*200 mm, 230*220*115 mm
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Marketing Type
Hot Product 2019
Warranty of core components
1.5 years
Core Components
PLC, Pressure vessel, Other, Engine, Gear, Motor, Pump, Bearing, Gearbox
Model
HBY2-10
Block Type
interlocking brick
Weight
1000kg
Power
7.5KW
Forming cycle
7-10s
Daily Capacity
6000-7000blocks/day
Pressure
40-50ton
Worker
6-7Person
Area
1000m2
Material
Clay Mud Earth Soil
Video Description
Product Description
Advantage:
1.f ull automatic and output is big
2.w idely used in Africa ,South America ,Southeast Asia,Russia,etc.
3.h igh quality ,very reliable,it can be used for 5-7years.all customer like it.

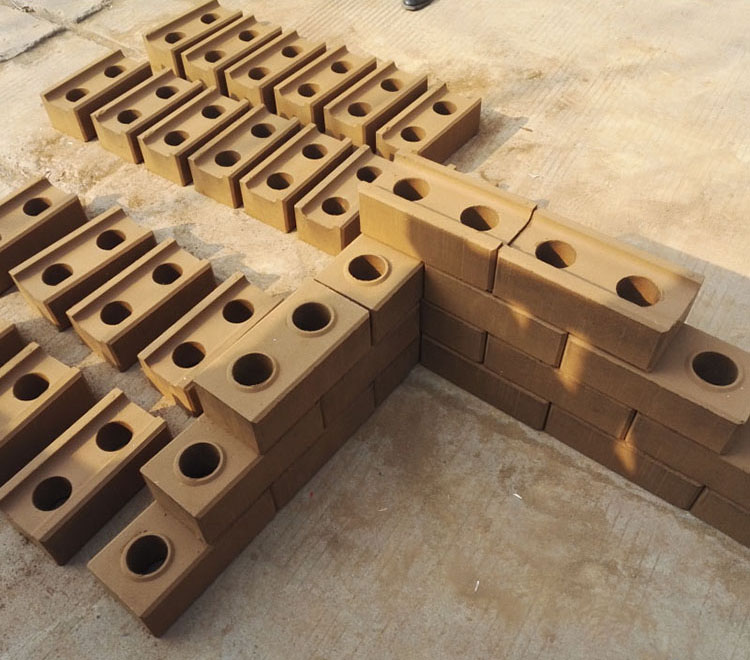

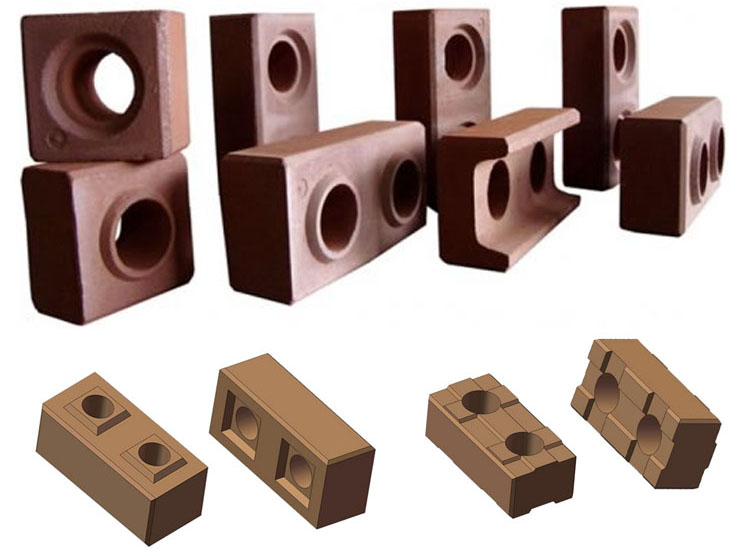

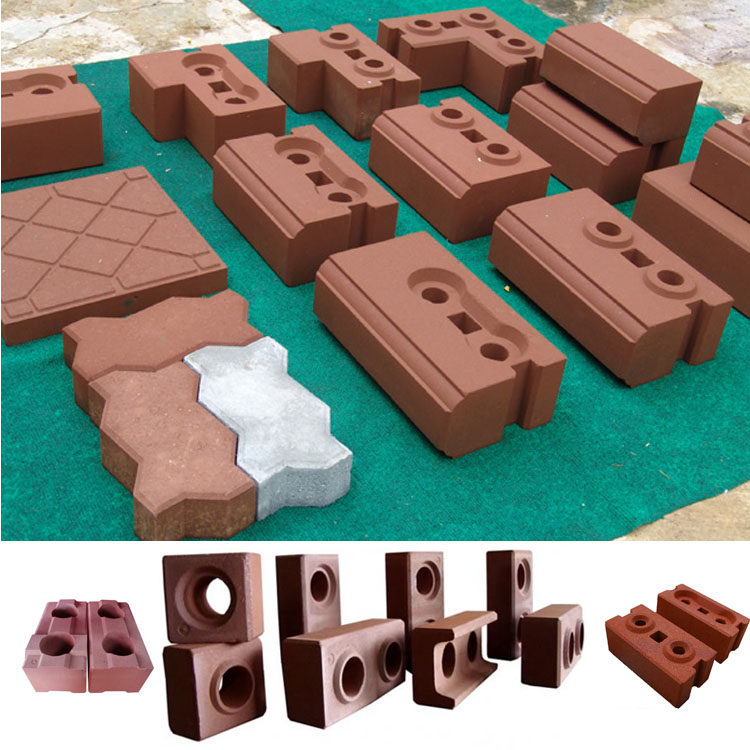

4.s uitable make interlocking soil brick ,soil pavement brick ,etc.
5. bricks are high quality ,hydraulic cylinder pressure is big,usually be 100-150ton,so the bricks quality is very high.
material:clay ,mud ,erath soil ,cement,water.
Ratio of raw material:cement 6%-8%,clay 80%-90% water:3%,about cement :clay : water is 2:30:1.

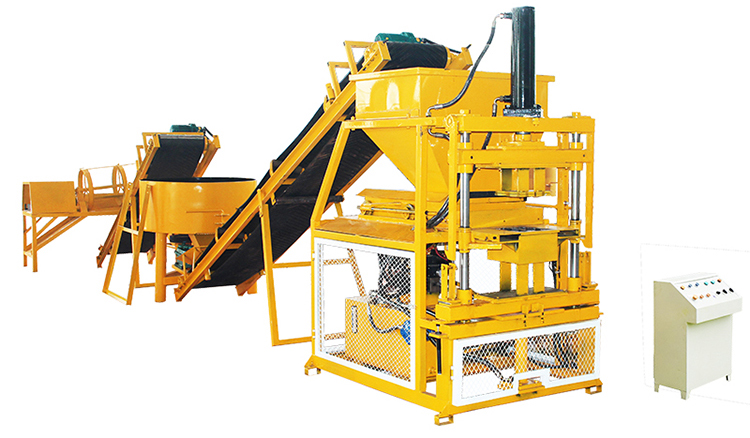

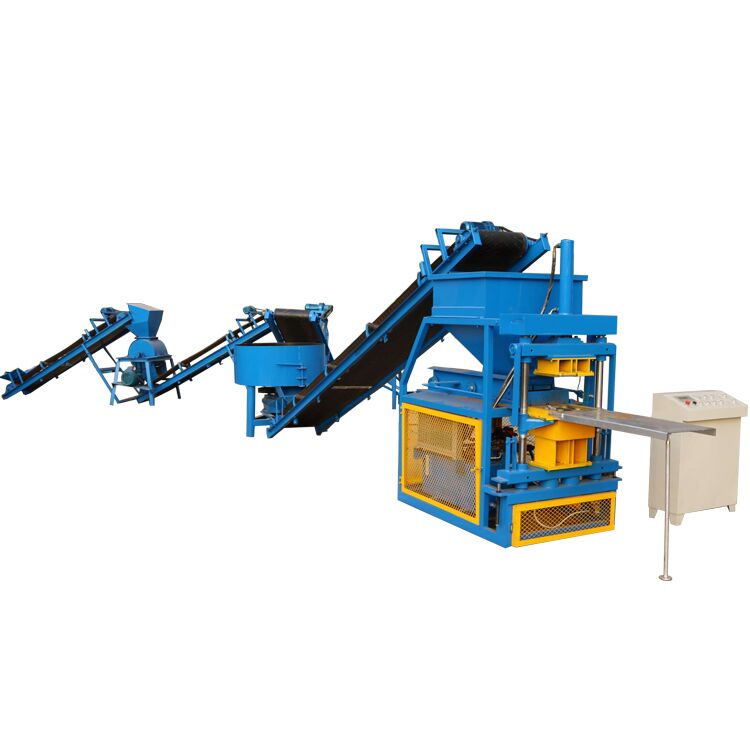

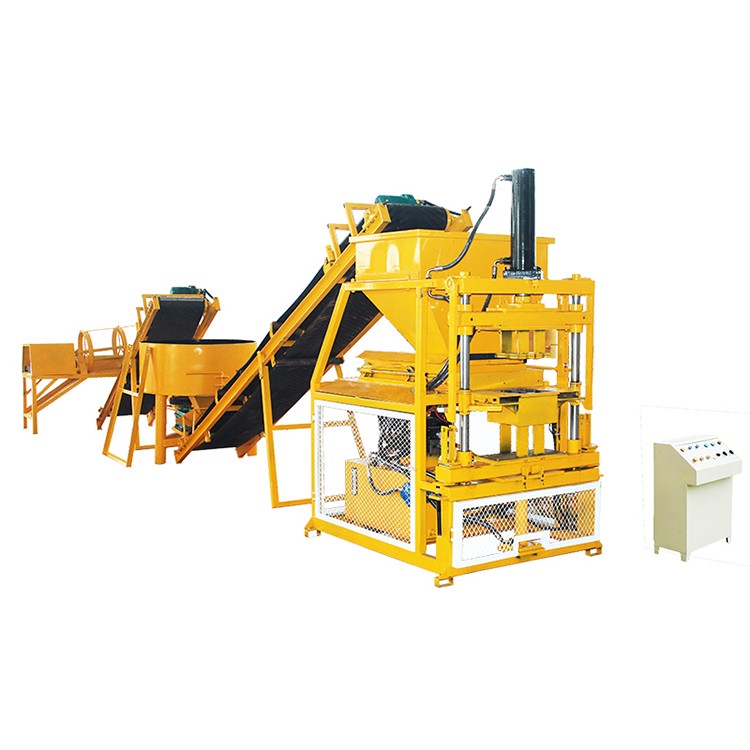

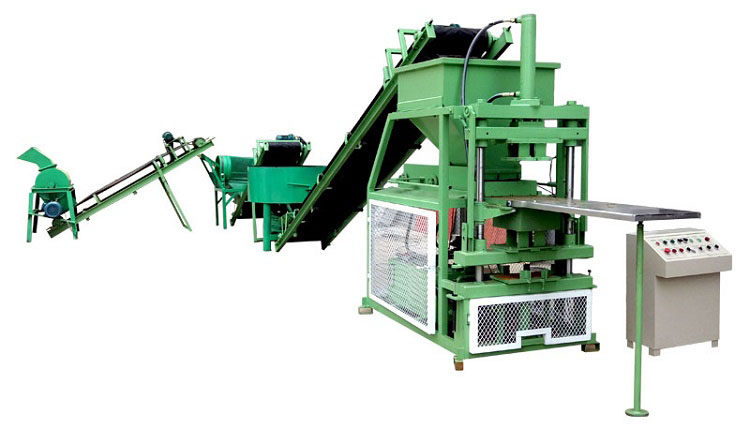

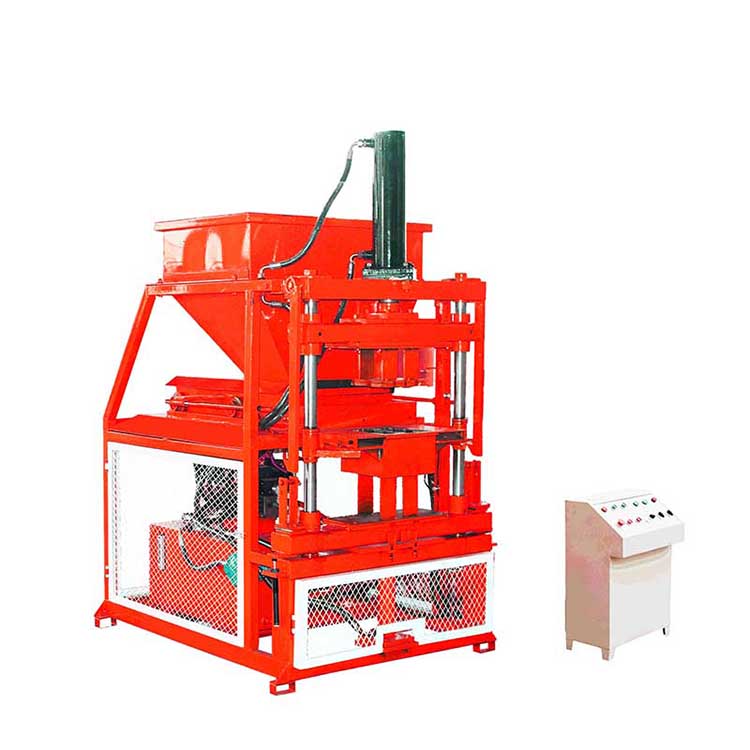

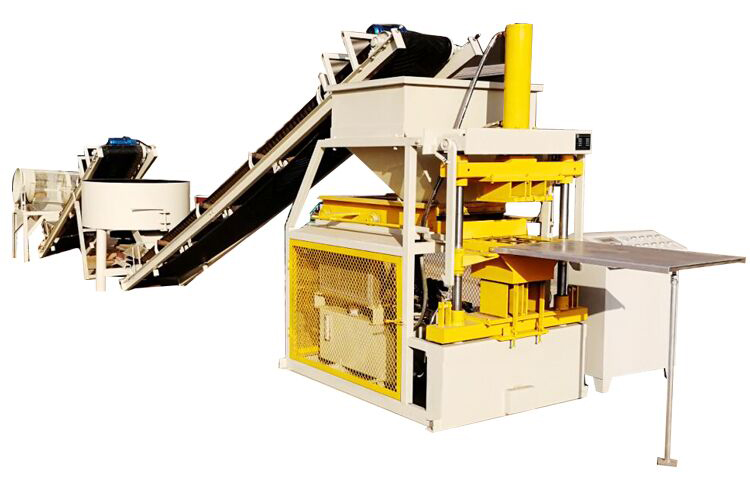

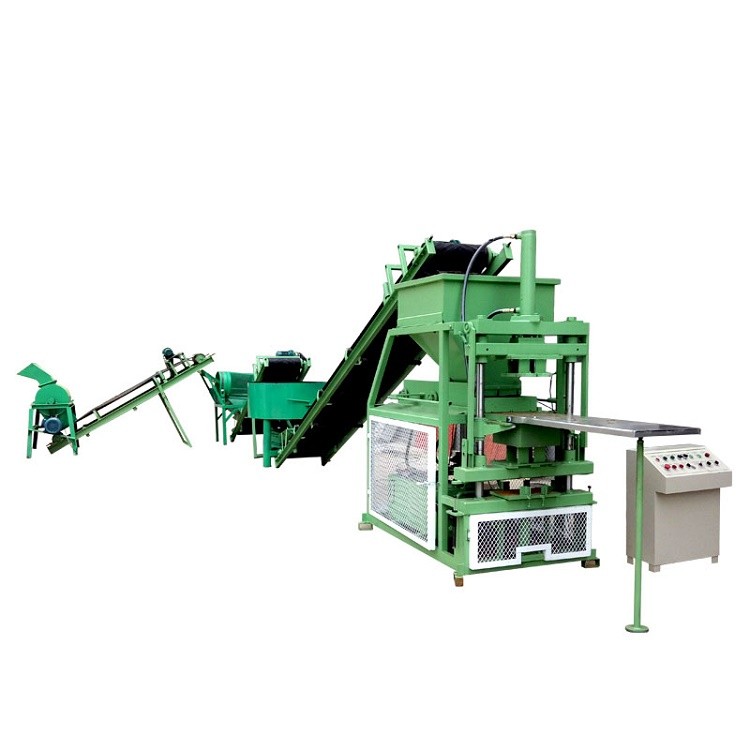

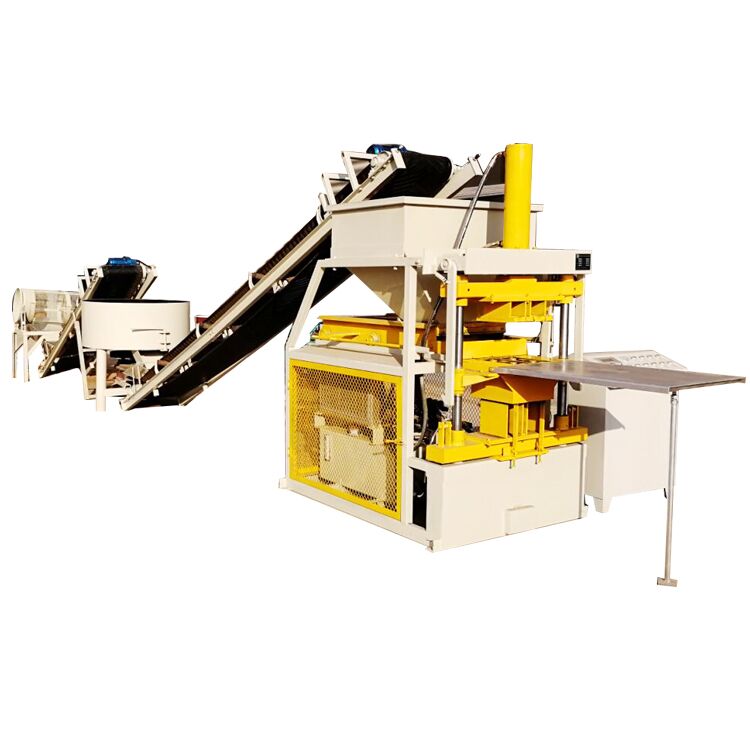

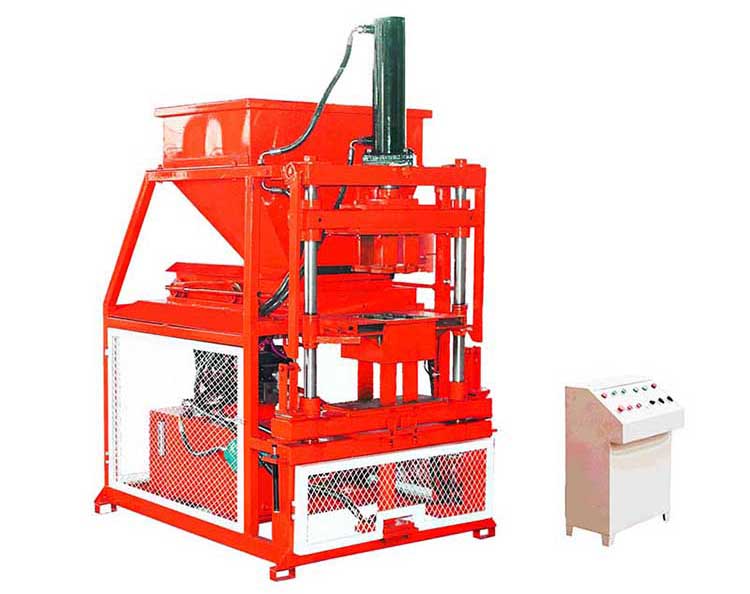

HBY2-10 clay block making machine main parameter
Model
HBY2-10
Overall Size
1600(L)×1000(W)×2100(H)Mm
Power
7.5KW
Pressure
15-22Mpa
Total Weight
1000 KG
Down Press
20-30ton
Moulding Time
7-10s

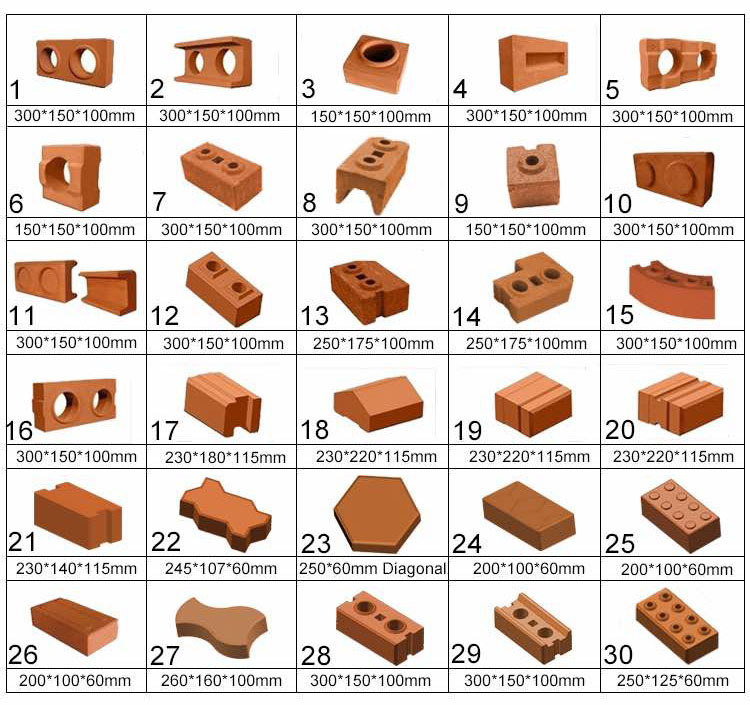

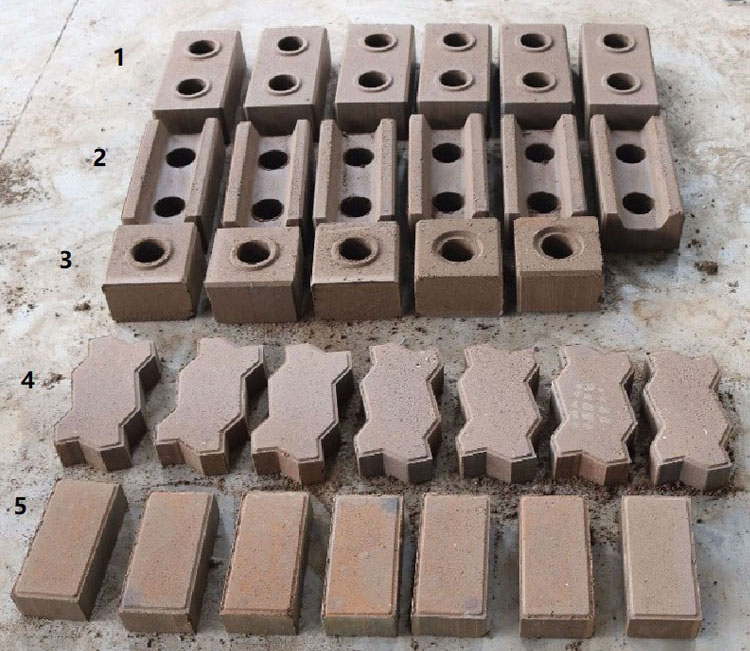

HBY2-10 Full Automatic Clay Brick Making Machine Capacity
Size(LxWxH)
Pcs/Mould
Pcs/hour
Pcs/ 8 Hr
Brick 300x150x100mm
2
900
7200
U Brick 300x150x100mm
2
900
7200
Brick 250x125x100mm
3
1350
10800
Brick 150x150x100mm
4
1800
14400
Brick 230x220x115mm
2
900
7200
Pavers 225x112.5x60mm
3
1350
10800
Pavers 225x112.5x60mm
3
1350
10800

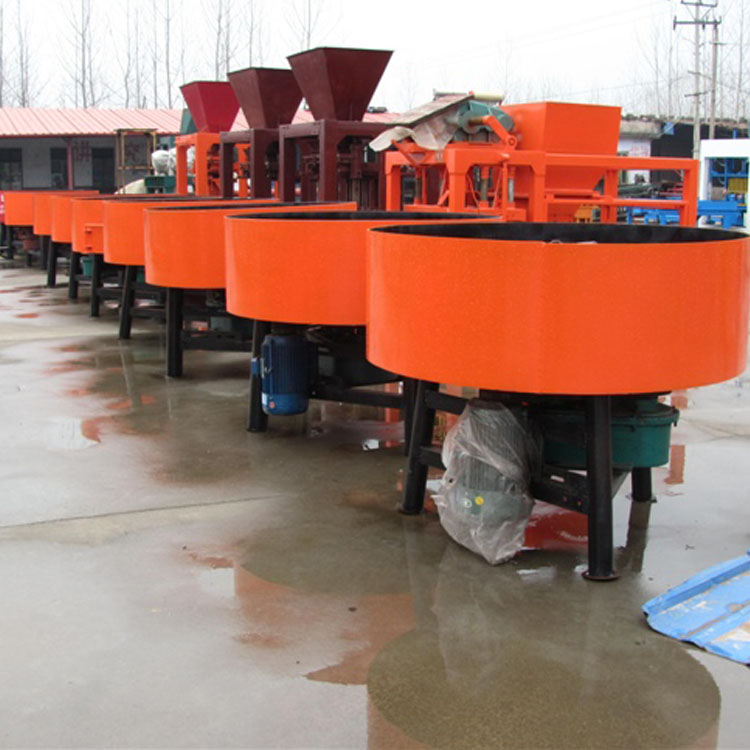

JQ500Mixer
Feeding Capacity
600L
Discharging Capacity
500L
Deepth
0.5m
Motor Power
7.5kw
Overall Size
1500L*1500W*1300Hmm
Diameter
1500mm
Reducer
350
Weight
800kg
Our Services
Pre-sale Service: Analyze the customer's need and market prospect; Provide perfect solution to set up a factory.
In-Sale Service: Provide service of installation in customers’ country; Provide training for operator and maintenance person.
After-sale Service: Provide free consultation; Supply parts service.
