name: Hydraulic Interlock Pavement Brick Making Machinery
date: 2021-06-06 19:02:19
view: 349
about:

　 Tancheng County Hongbaoyuan Machinery Co., Ltd. is located on Shandong Province and North part of Jiangsu Province, where it is close to the Express Way from Beijing to Shanghai. and only 5 Km to the north from our Factory is Matuo Township of Tancheng Co...

0539 8309839

hyb@hongbaoyuan.net

DETAIL

Product Description

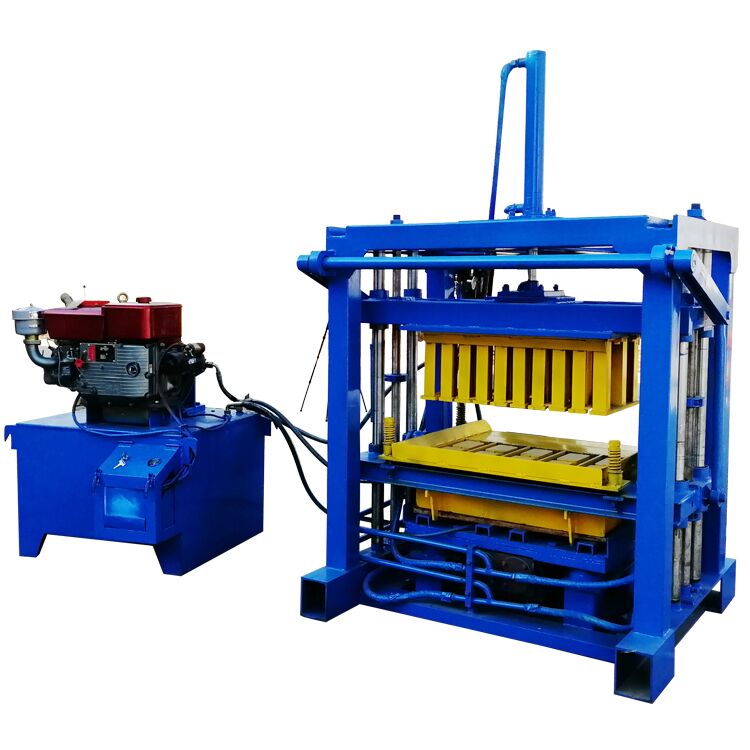

1.diesel engine and hydraulic ,very suitable for no electric area ,

2.And price is very reasonable ,very suitable for business starter

3.very esay to install and operation, all customer can deal.

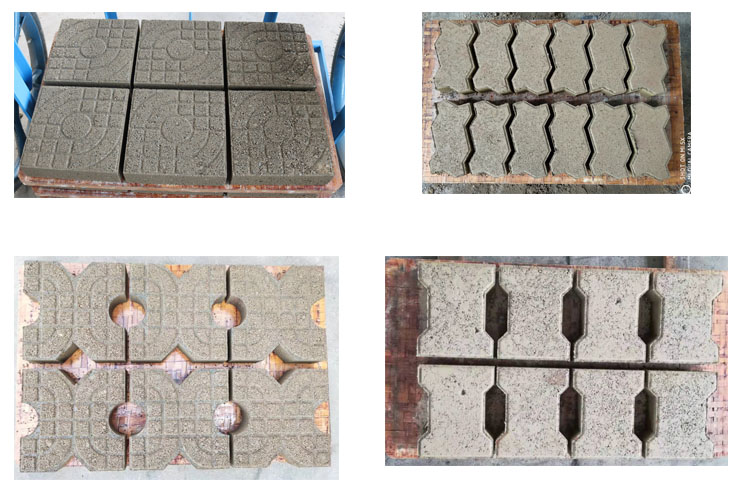

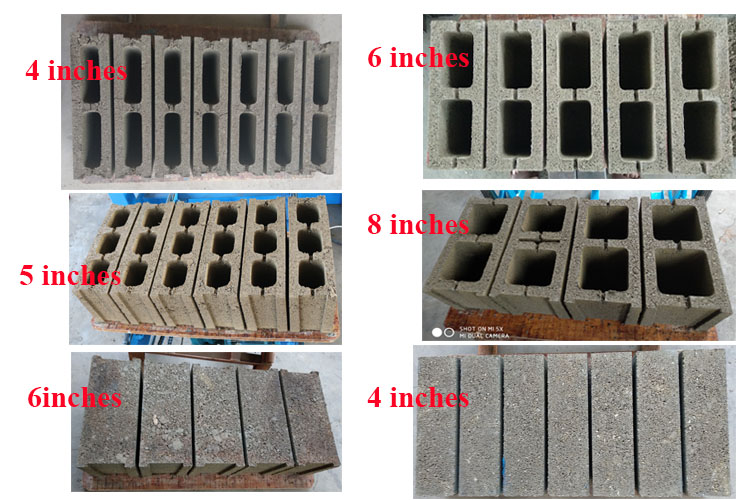

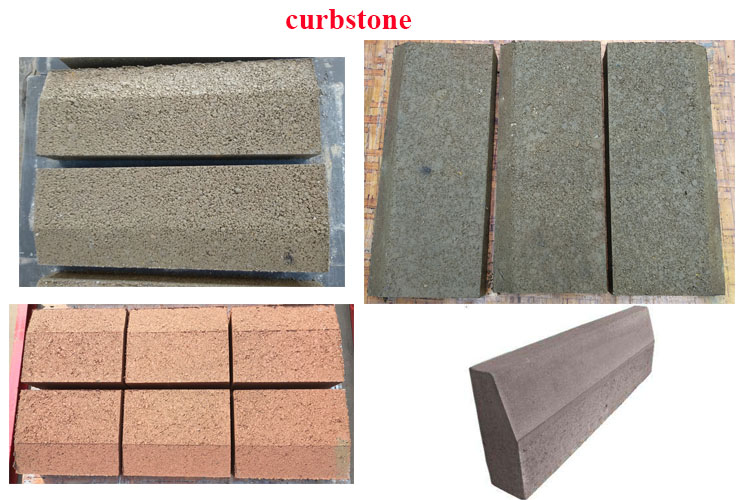

4.and suitable for hollow solid block ,pavement block ,curbstone ,etc

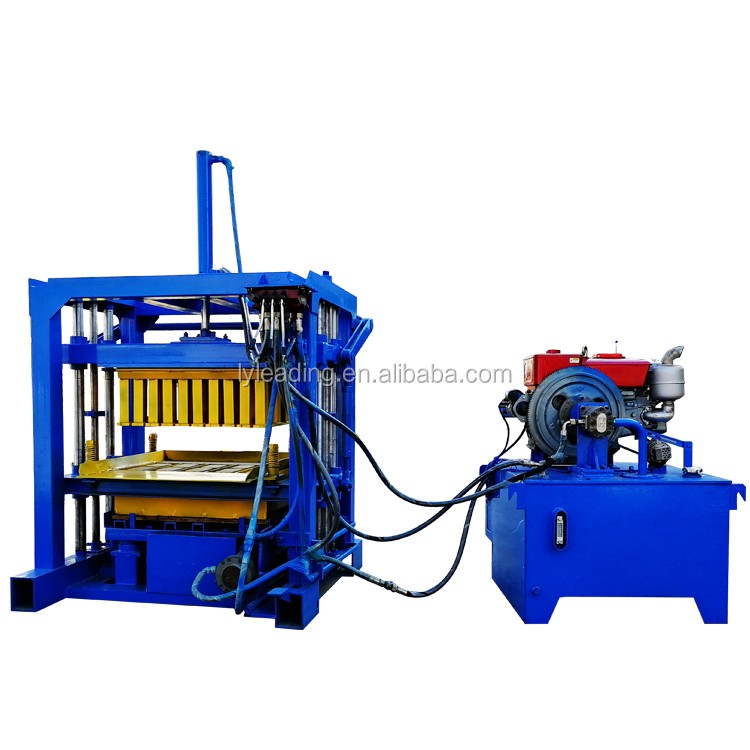

Hydraulic Interlock Pavement Brick Making Machinery(图1)

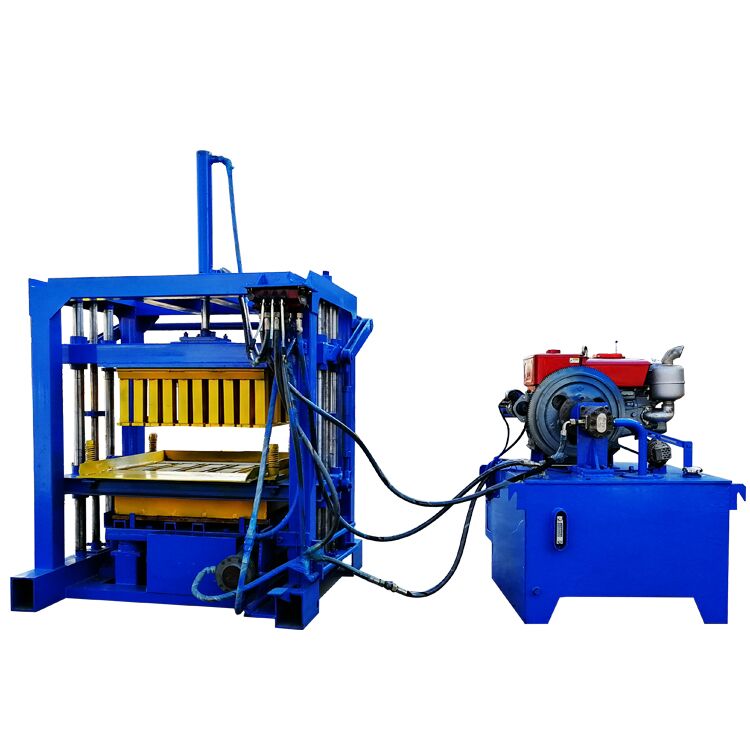

Hydraulic Interlock Pavement Brick Making Machinery(图2)

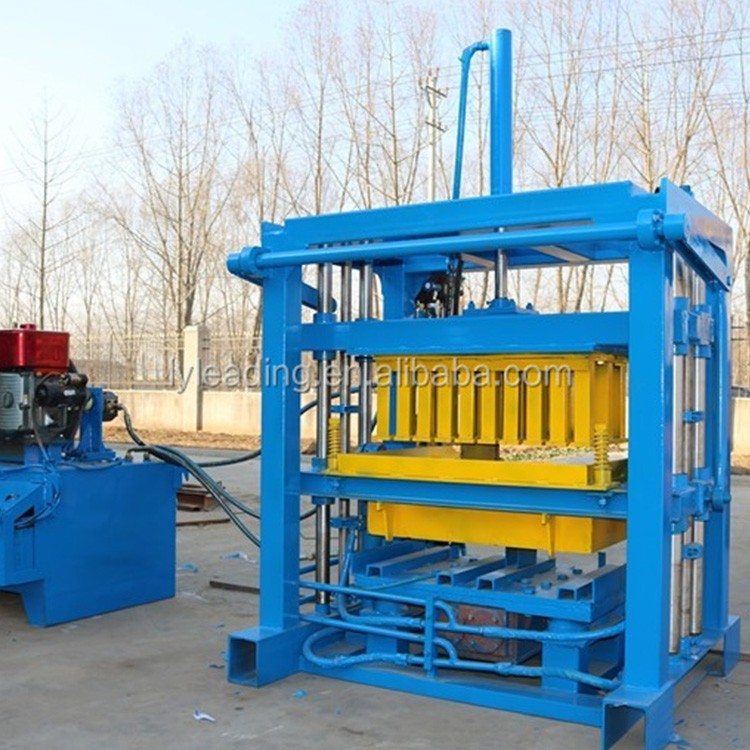

Hydraulic Interlock Pavement Brick Making Machinery(图3)

QTJ4-40H Block Making Machine Main Parameter

Overall size	116x165x200cm	Cylinder model	80D
Host machine power	15HP(9.6KW)	Oil consumption	2L/H
Vibration and down press Force	13.5 ton	Total weight	1500kg
Forming cycle	35-40s	Pallet size	850x450x25mm

QTJ4-40H Block Making Machine Capacity

Size(LxWxH)	Pcs/Mould	Pcs/hour	Pcs/ 8 Hr
400X150X200	5	450	3600
400X200X200	4	360	2880
400X100X200	7	630	5040
400X240X190	3	270	2160
240X115X52	21	1890	15120

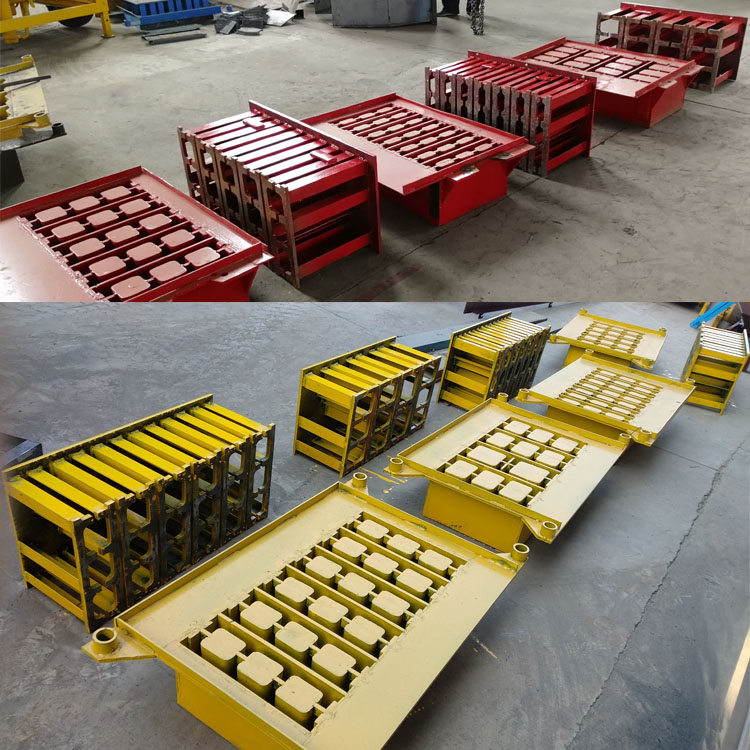

We can also design the moulds for your requirement

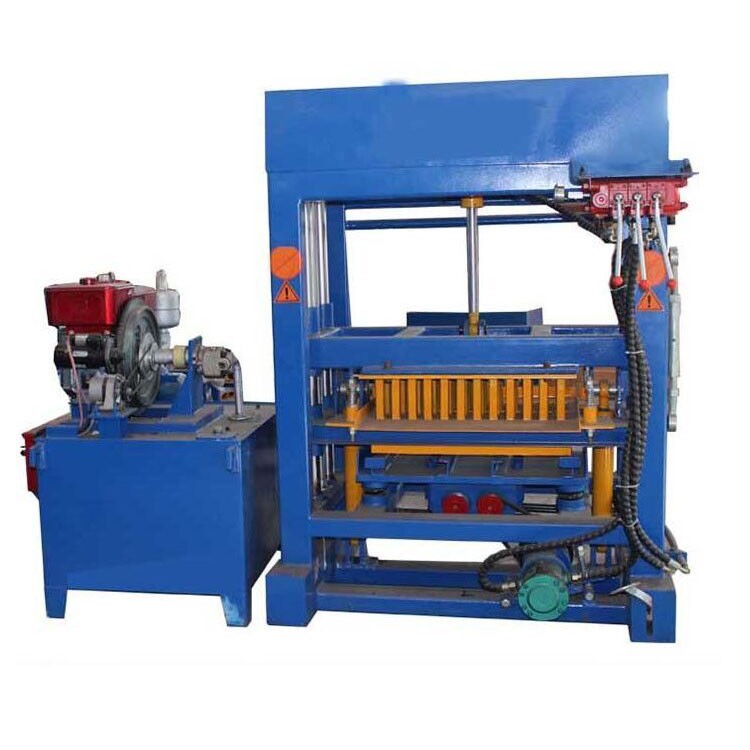

Hydraulic Interlock Pavement Brick Making Machinery(图9)

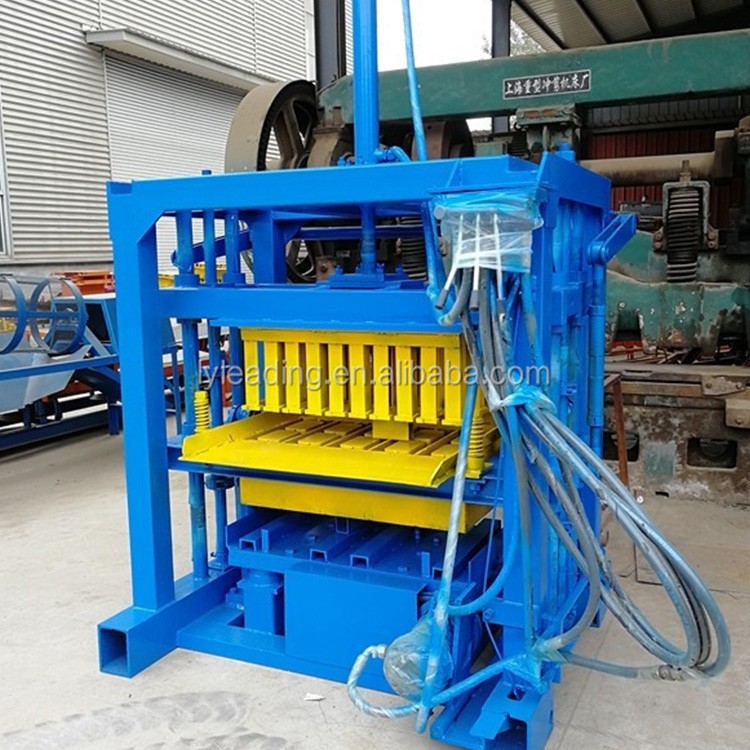

Hydraulic Interlock Pavement Brick Making Machinery(图12)

Hydraulic Interlock Pavement Brick Making Machinery(图13)

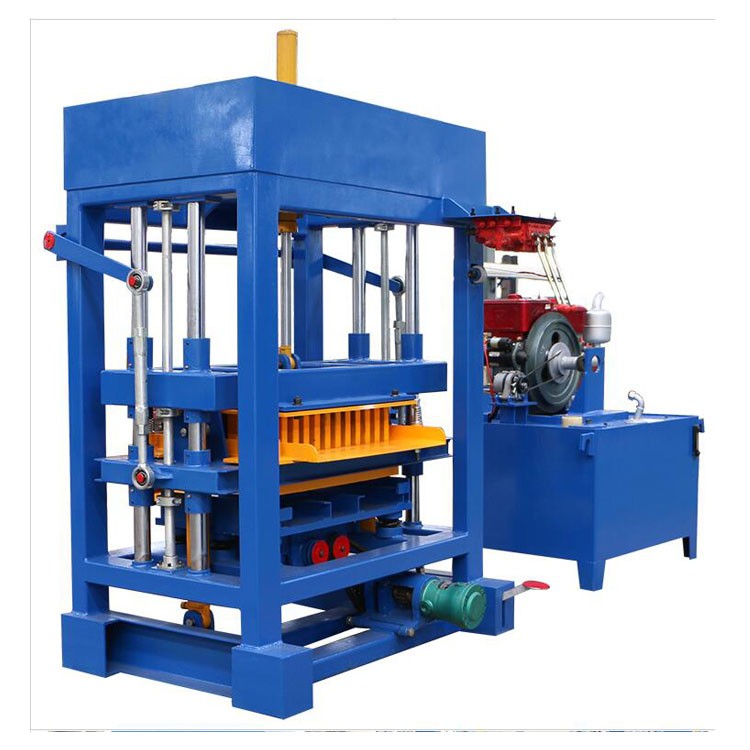

Hydraulic Interlock Pavement Brick Making Machinery(图14)
