Overview
Quick Details
Applicable Industries | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Home Use, Construction works , Energy & Mining, Other |
After Warranty Service | Video technical support, Online support, Spare parts, Field maintenance and repair service |
Condition | New |
Type | Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine, Other, Autoclaved aerated concrete block (AAC) |
Brick Raw Material | CONCRETE |
Processing | Brick Production Line |
Method | vibrating |
Automatic | Yes |
Production Capacity (Pieces/8 hours) | 4480 pcs/8hours, 5760 pcs/8hours |
Place of Origin | Shandong, China |
Brand Name | HONGBAOYUAN |
Voltage | 380V or as request |
Dimension(L*W*H) | 2050*1660*1900MM |
Certification | ISO9001/CE |
Warranty | 1 Year |
Key Selling Points | Automatic |
Brick size | 400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 400*150*200 mm, 200*200*60 mm, Other, 400*200*200 mm |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Marketing Type | New Product 2020 |
Warranty of core components | 1.5 years |
Core Components | PLC, Pressure vessel, Other, Engine, Gear, Motor, Pump, Bearing, Gearbox |
Raw material | Sand |
After-sales Service Provided | Engineers available to service machinery overseas |
forming way | mould vibration |
forming cycle | 30-36S |
pallets | 850*450mm |
voltage | 380v or as request |
type | 4-30c machine |
color | optional |
Main market | African |
Products | hollow blocks |
Raw material | concrete |

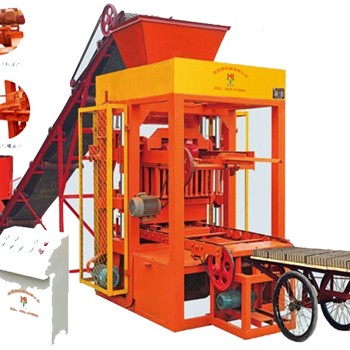

QTJ4-30C Hollow cement concrete paver making machine cement manufacturing plant cost

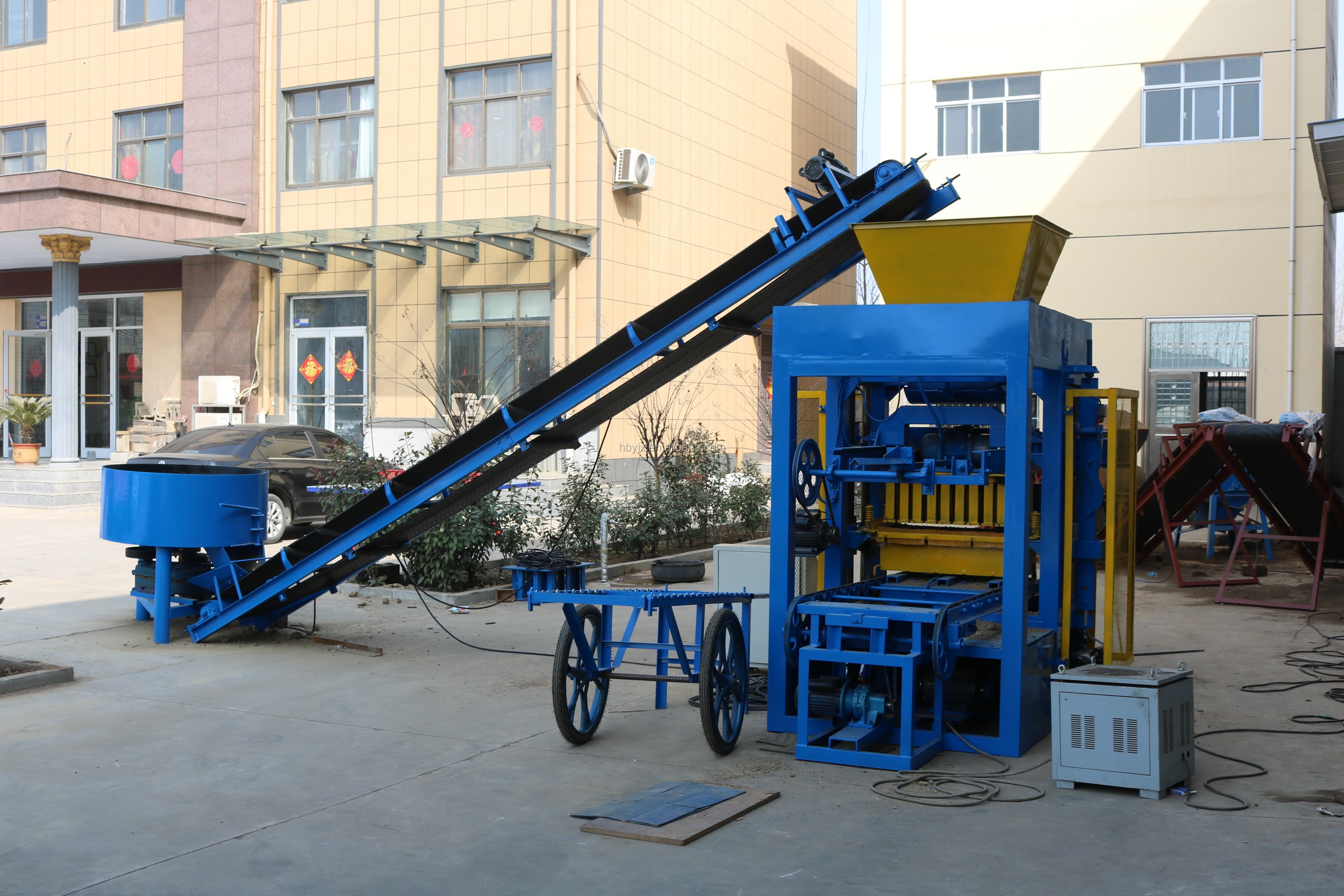

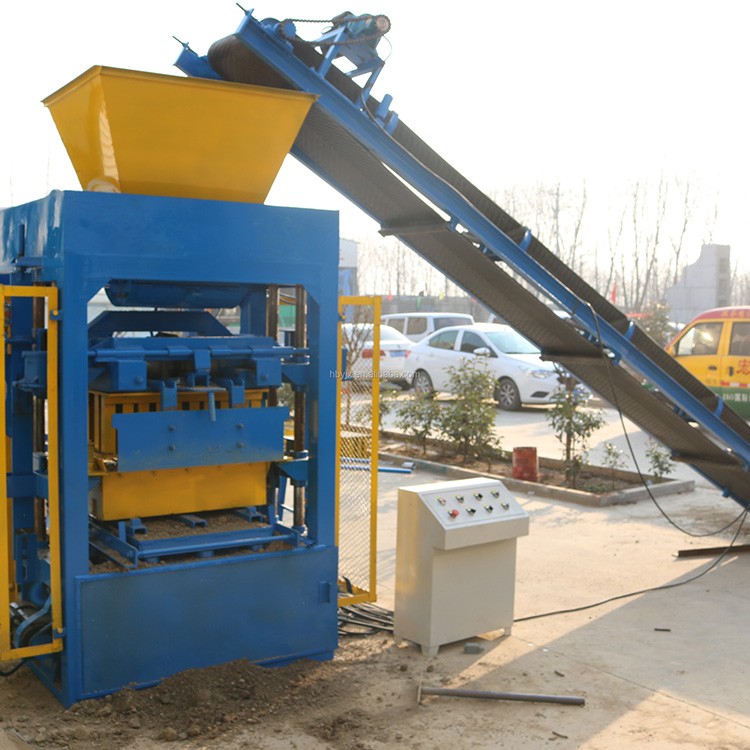

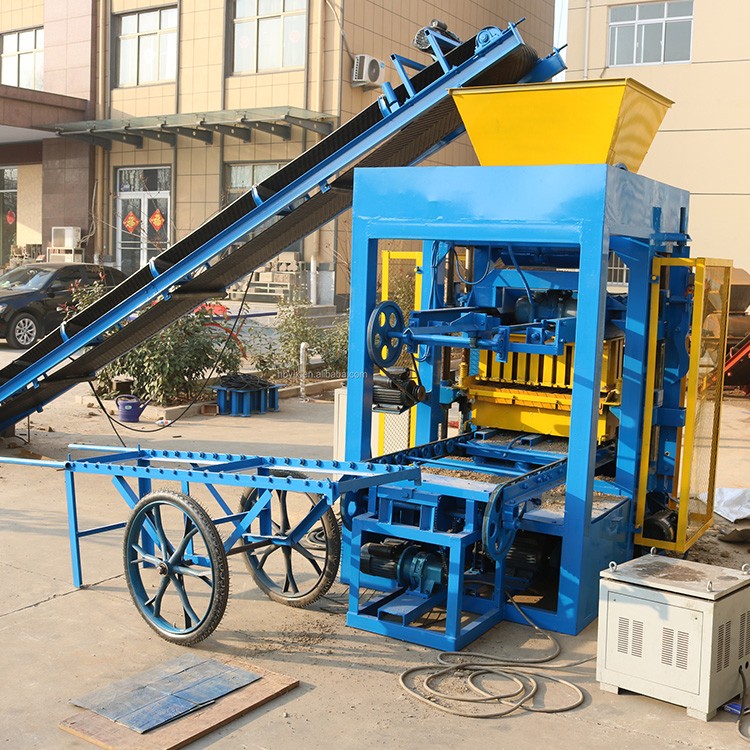

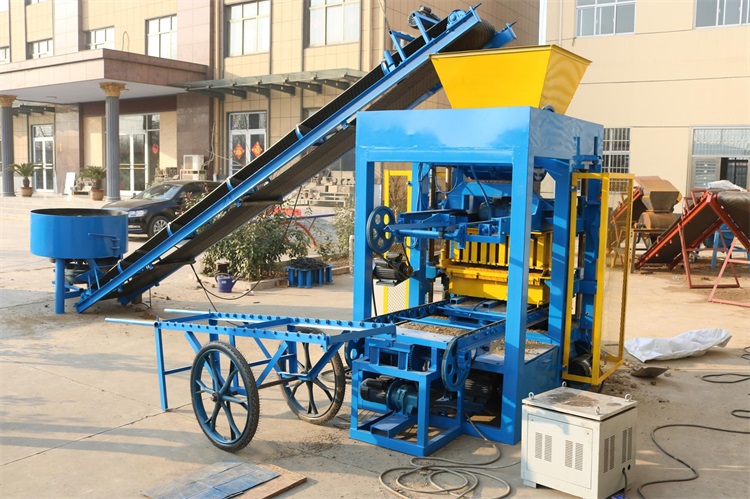

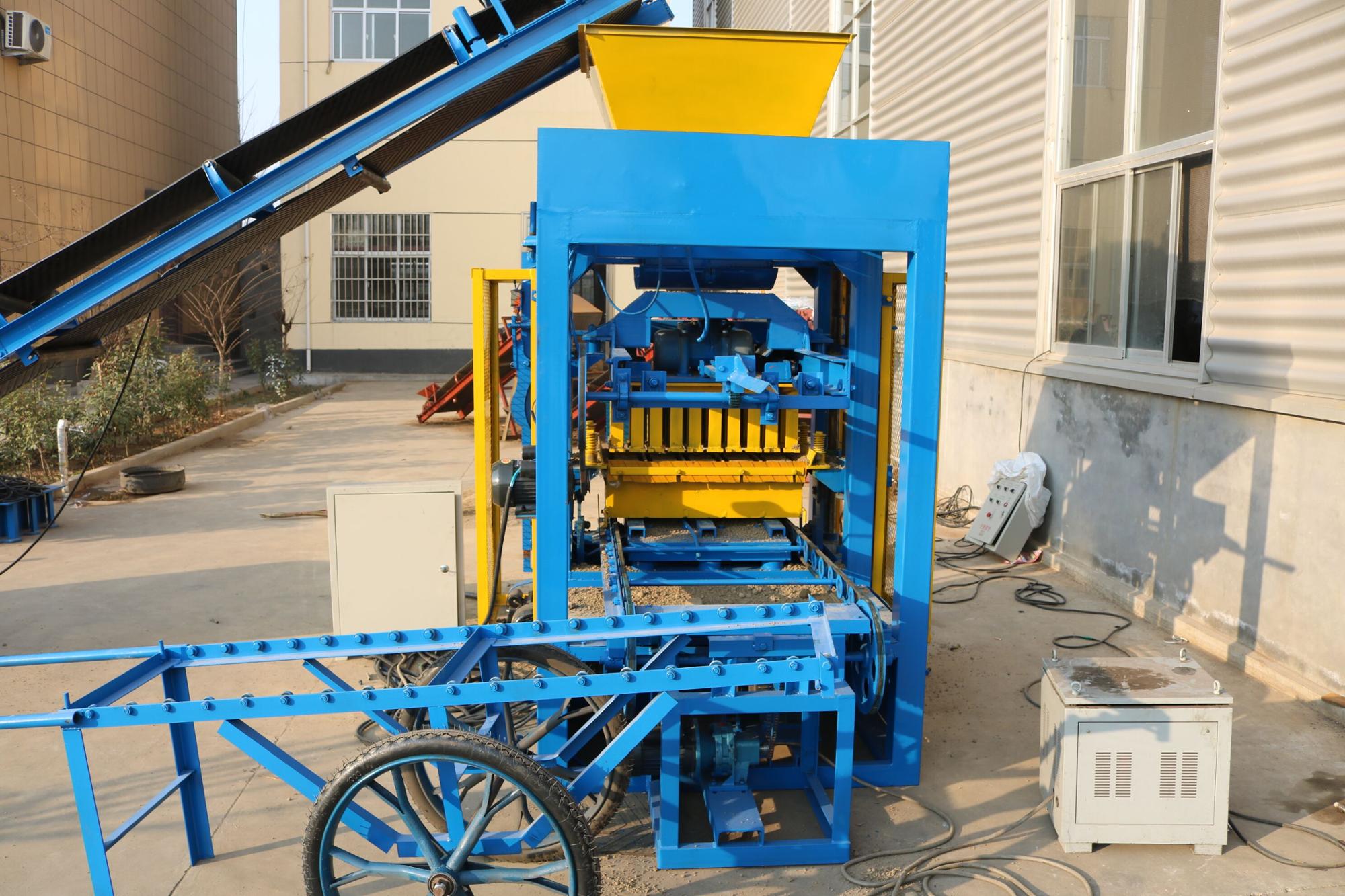

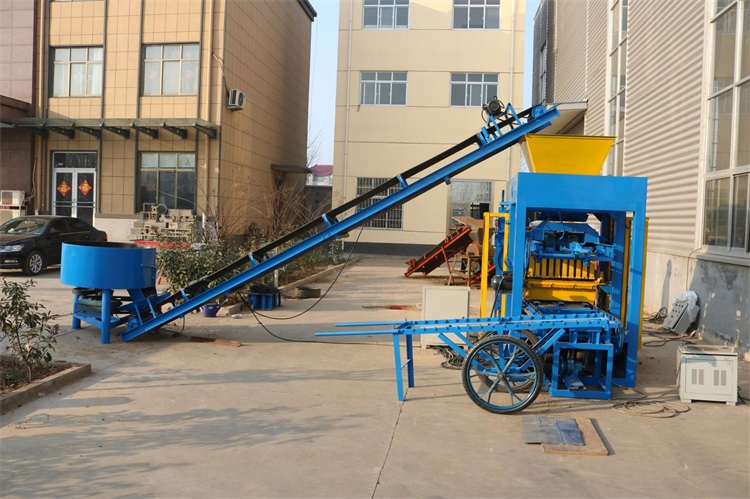

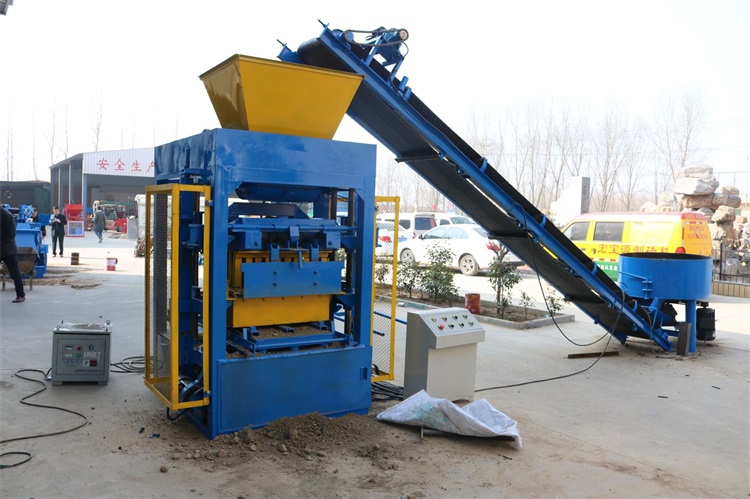

Product display
1.QTJ4-30C Fixed Pneumatic Duble Function Block Forming Machine for Hollow Block and Baking-Free Brick is one kind of semi-automatic mode, which is developped by our factory on the basis of absorbing the advantages of medium and small sized block forming machines in the past. For this machine, one modification is made on the basis of QTJ4-30B so that it is more firm in structure and more precise in positioning of mould and pressing die head.
2.Also, for this machine, the directional and vertical vibrationg by bottom mould and pressing and vibrating by upper die are adopted. So, the blocks produced with this machine are even in density and high in strength. For its material distributing system, it is modified into the pneumatic. For its pneumatic Pushing-Pulling mould mounting system, many digital travel limit switches are set up. The productivity is largely increased. (For this model, PC device can be equipped for full automatic block production)
Product quantity | size | pcs/mould | quantity |
240*115*52 | 26pcs/mould(standard brick) | 20000pcs standard bricks |
390*190*190 | 4pcs/mould(hollow brick) | 2000-3000pcs hollow bricks |
390*240*190 | 3pcs/mould(hollow brick) |
Cycle | 30s |
Power | 13.5kw |
Weight | 3.5T |
Vibration force | 40KN |
Overall size | 3600*1730*2580mm |
Carriage size | 850*550*30mm |
Advantages
A:the steel is national standard No.45 steel.the best in our country
B:the welding is the best welding technology,anti-wear, aseismatic,anti Moist
C:the mould is high temperature carburizing heat treatment through 900 Degrees Celsius
D:guide column:four guide column,use overlong guide design,
the surface is chrome-plated,have good anti-wear and high anti-distortion, Long service life .
E.Multi-function:exchange moulds can produce solid bricks,hollow blocks and porous block
can make all kinds of blocks
F.Under The vibration platform has two Super motors to drive the vibration box to vibrate
and the up mould also has one motors to vibrate and so the forming way is vibration,so the
blocks are High strength, the compactness of uniform.
Details Capacity
Size(LxWxH) | Pcs/Mould | Pcs/hour | Pcs/ 8 Hr |
400X150X200 | 5 | 600 | 4800 |
400X200X200 | 4 | 480 | 3840 |
400X100X200 | 7 | 840 | 6720 |
400X250X200 | 3 | 360 | 2880 |
240X115X52 | 26 | 3120 | 24960 |
We can also design the moulds for your requirement |
1. Area: Workshop area: 50-60m2, all factory area 1000m2, the bigger, the better.
2. Workers : two or three
3. Ratio of raw material:cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5.
4. water consumption per day:3%-5% of raw material .Weight.

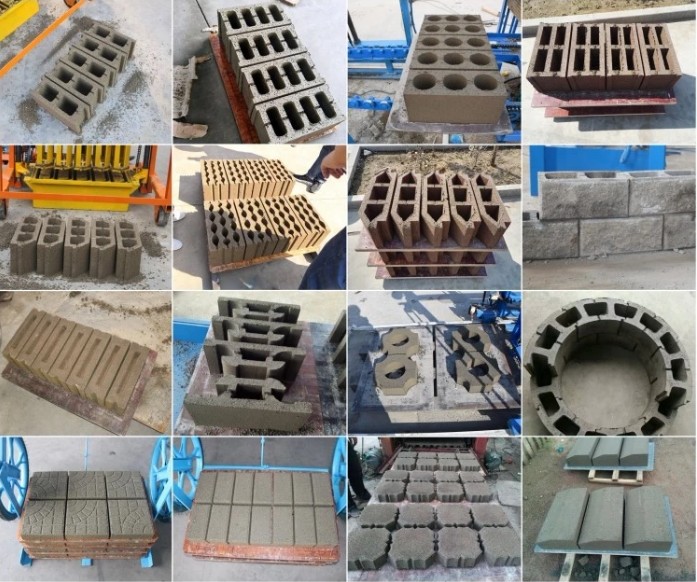

Sample of the block

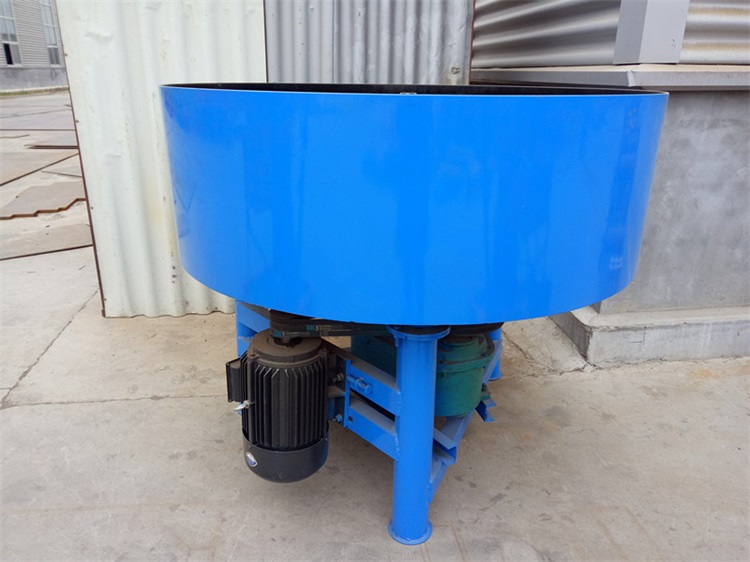

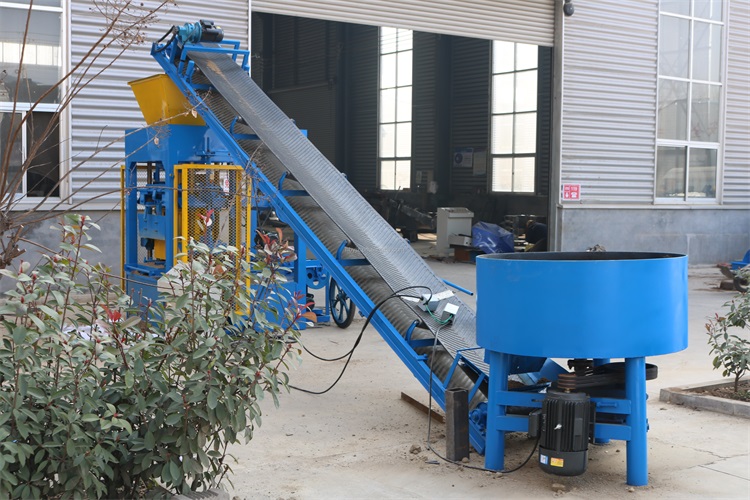

Mixer

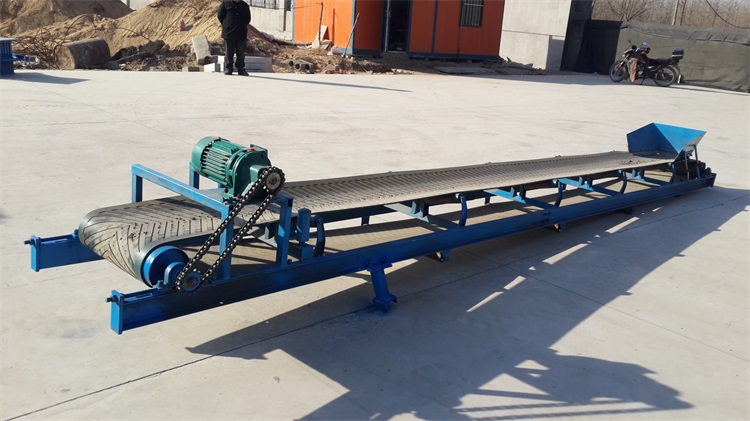

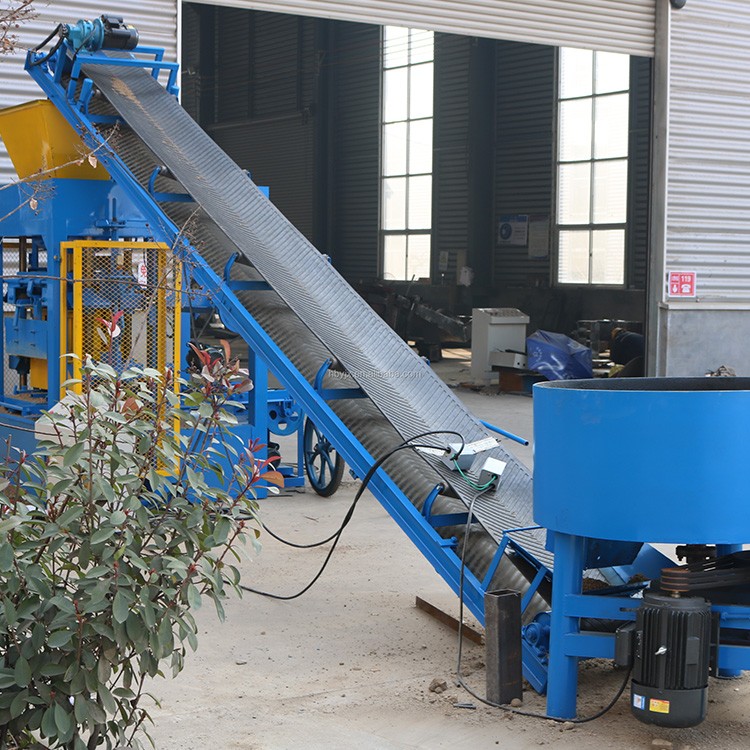

Conveypr Belt
Our Services
Inquiry service:
Accept user’s enquiries by all kinds of ways and establish user’s product cognition.Provide all kinds of product data and let customer understand characteristics of product.
Pre-sale service:
Accept inquiry of customers ,confirmation of investment advice of choice of product ,assist the customers to design the workshop
In-sale service:
Sale of product,help customers build the base ,technical training of customers’ workers ,practice of operation ,help to install ,train the operators in the workshop.
After-sale service:
24 hours service of technology inquiry, instant components supply, regularly technical service guidance of maintain,long distance malfunction control.
Company Information
Our customers
COMPANY INTRODUCTION
FAQ
1.What is your Minimum Order Quantity?
Minimum order quantity is 1 set machine, anyway, special will bu give on larger scale.
2.what are your international market?(export experience)
Our company product has been exporting to many countries, such as Korea, Japan, Pakistan, Turkey, Israel, Spain, Mongolia, Uzbekistan, Kazakhstan, Congo, and South American, and so on.
3.What are you main products?
Host machine
Mixer
Belt
One free mould
Some barrows
4.packing and shipping
A) .delivery time: 5-30days after receipt of your deposit.
B) .payment terms:30% T/T in advance, 70% the balance is paid(by T/T) before delivery
C). package:().standard package
(2).if you need special package, we can do as your requirement
If any questions, please do not hesitate to contact us at any time.
we are 24 hours for your service.
