Overview
Quick Details
Applicable Industries
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works
After Warranty Service
Video technical support, Online support, Spare parts, Field maintenance and repair service
Condition
New
Type
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine, Other, Autoclaved aerated concrete block (AAC)
Brick Raw Material
CONCRETE
Processing
Brick Molding Machine
Method
Hydraulic pressure
Automatic
Yes
Production Capacity (Pieces/8 hours)
Other, 4480 pcs/8hours, 2500 pcs/8hours, 3400 pcs/8hours, 1920 pcs/8hours, 5760 pcs/8hours, 1500 pcs/8hours, 1280 pcs/8hours, 3000 pcs/8hours, 12000 pcs/8hours, 3200 pcs/8hours, 2560 pcs/8hours, 1000 pcs/8hours, 800 pcs/8hours, 6000-20000blocks/day
Place of Origin
Shandong, China
Brand Name
HONGBAOYUAN
Voltage
local voltage
Dimension(L*W*H)
3700(L)*2100(W)*2700(H)mm
Certification
CE/BV/ISO:9001
Warranty
1 Year
After-sales Service Provided
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Key Selling Points
Automatic
Brick size
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, Other, 400*200*200 mm, 230*220*115 mm
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Marketing Type
New Product 20 19
Warranty of core components
1 Year
Core Components
PLC, Pressure vessel, Other, Engine, Gear, Motor, Pump, Bearing, Gearbox
Video Description
Product Description
Advantage:
full automatic, hydraulic and output is big. the machine equip with PLC,
easy to operate.the control box is very easy to operate.

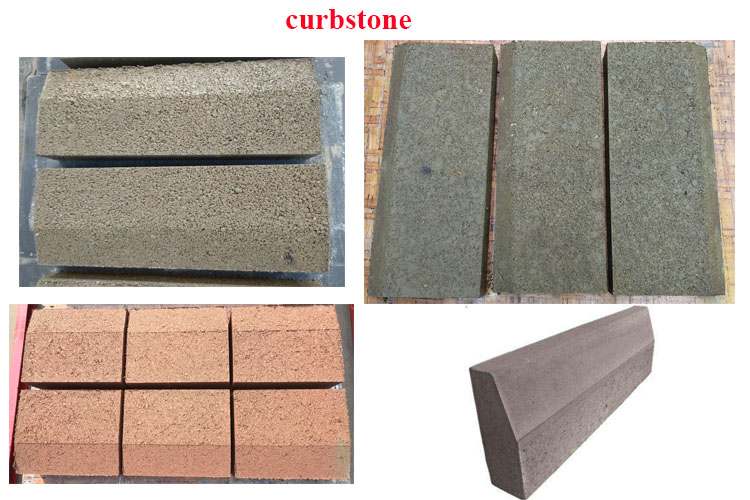

suitable make hollow solid block ,color pavement block,curbstone.
material can be easy find all over the world .
material:cement ,concrete ,sand ,flyash ,construction waste ,slag ,mountain flour.
Ratio of raw material:cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5.

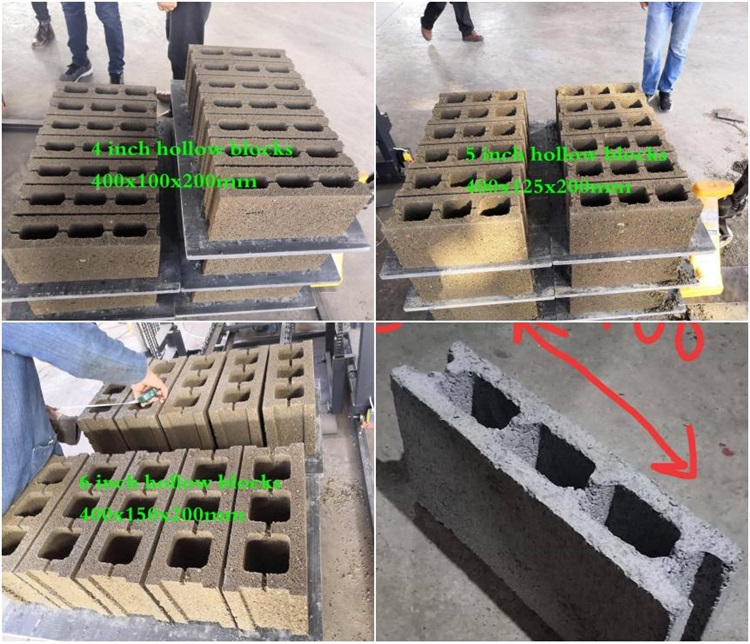

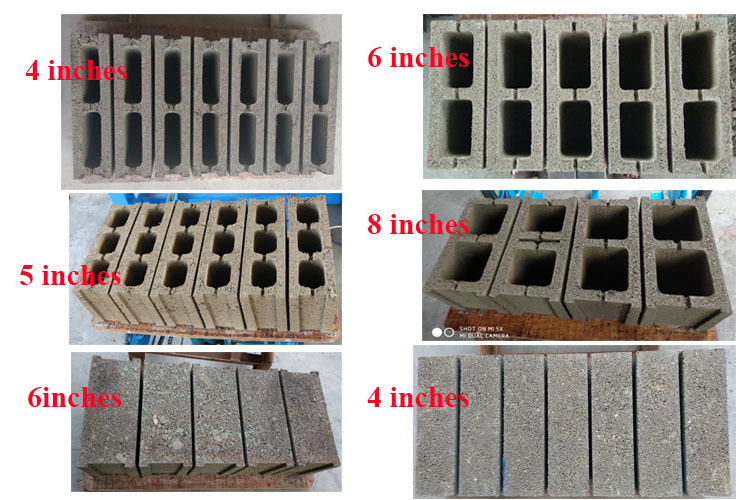

hollow block weight:(400*200*200) :17KG,(400*150*200):13.5KG,(400*100*200):10KG

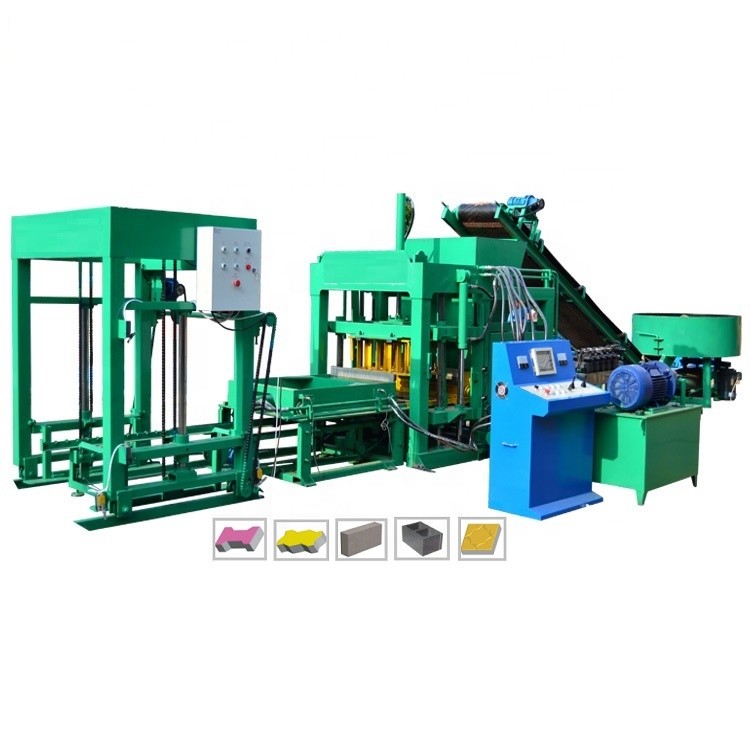

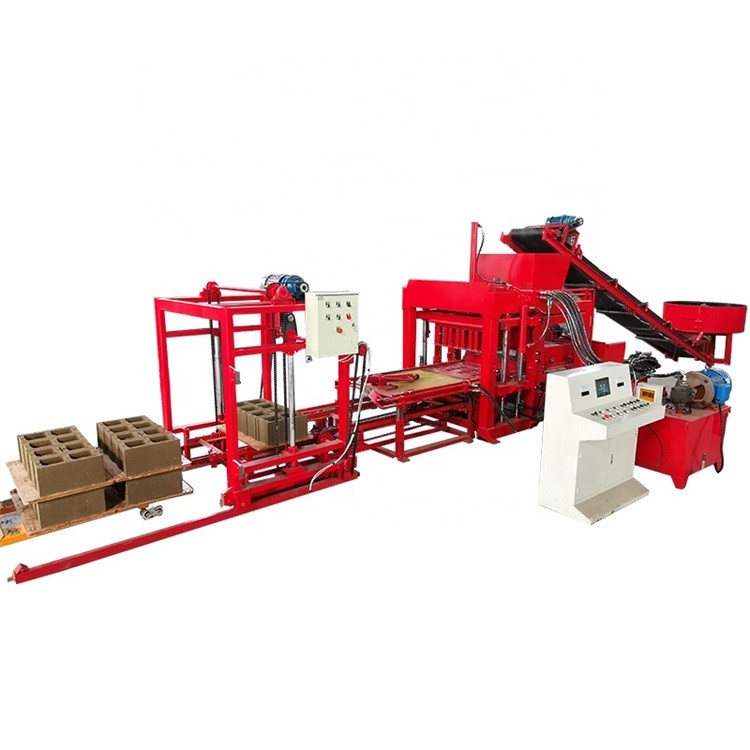

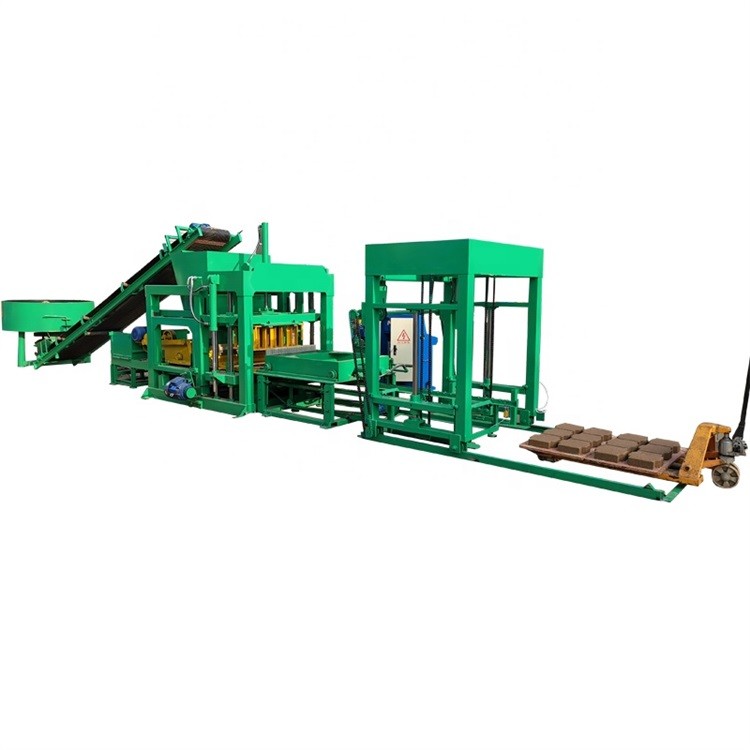

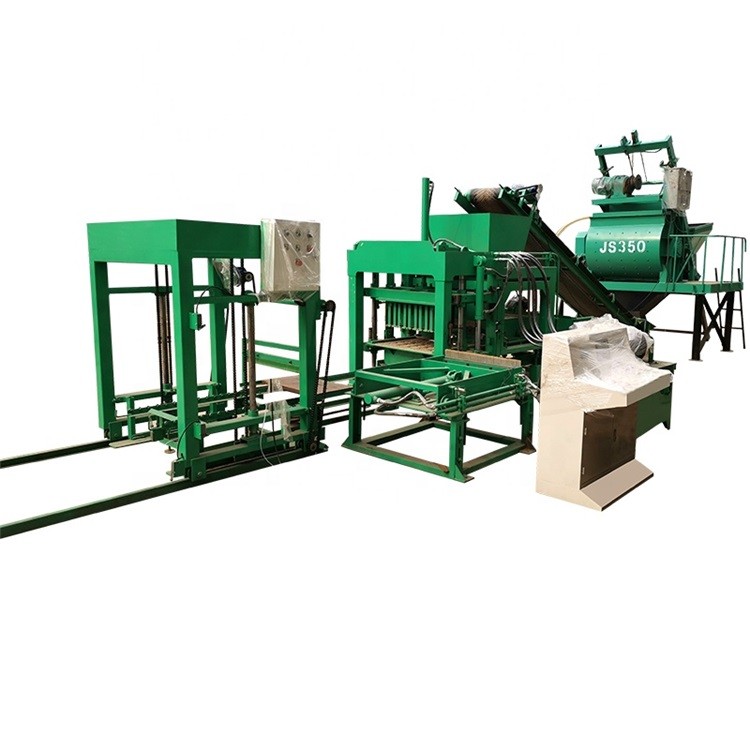

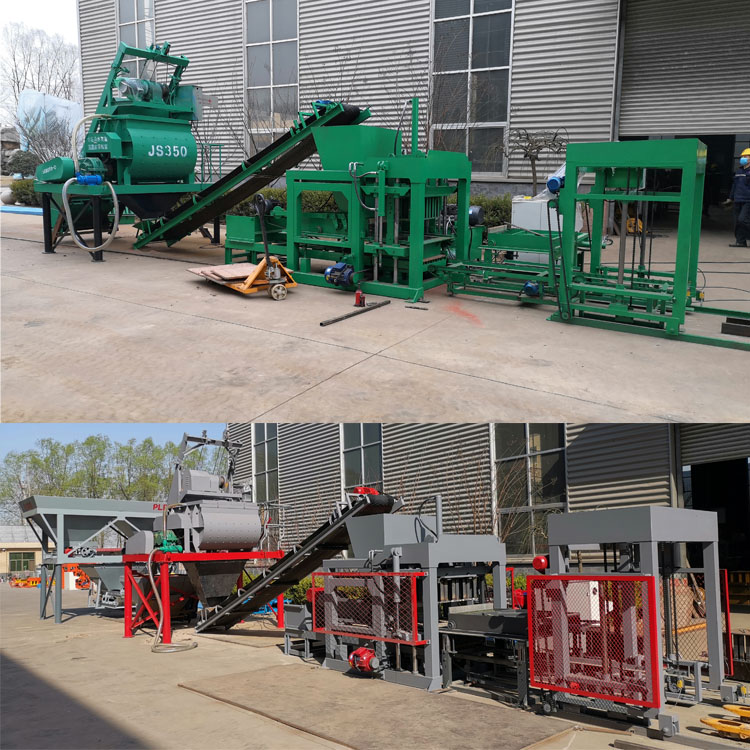

New Condition Hollow Block Machine Donyue Block Making Machine Brick
Molding Machines Main Parameter
Model
QTJ4-18
Power
20.5kw
Weight
5000kg
Overall size
3700(L)*2100(W)*2700(H)mm
Forming cycle
20-25S
Pallet size
850/880*550*20mm
Vibrating force
60KN
Down pressure
4-7 ton
New Condition Hollow Block Machine Donyue Block Making Machine Brick Molding Machines Installation
Area
2600-3300 m2
workshop
80m2
Raw Material Work Shop
400m2
Office
50m2
Staff And Workers
5-6 person
Power Distribution
40kw
Water Consumption
5T per day
Pallets need
1500pcs

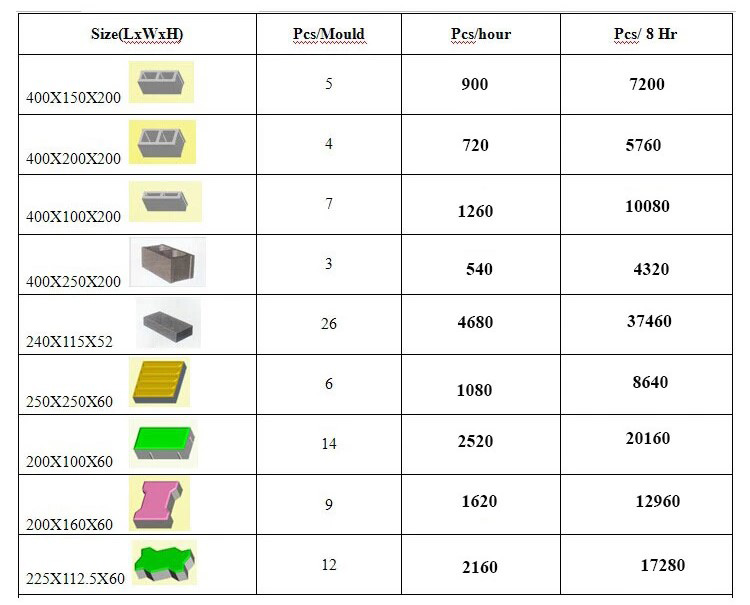

New Condition Hollow Block Machine Donyue Block Making Machine Brick Molding Machines capacity:
capacity:
Size(LxWxH)
Pcs/Mould
Pcs/hour
Pcs/ 8 Hr
400X150X200
5
1200
9600
400X200X200
4
960
7680
400X100X200
7
1680
13440
400X250X200
3
720
5760
240X115X52
26
6240
49920
250x250x60
6
1440
11520
200x100x60
14
3360
26880
200x160x60
9
2160
17280
225x112.5x60
12
2880
23040

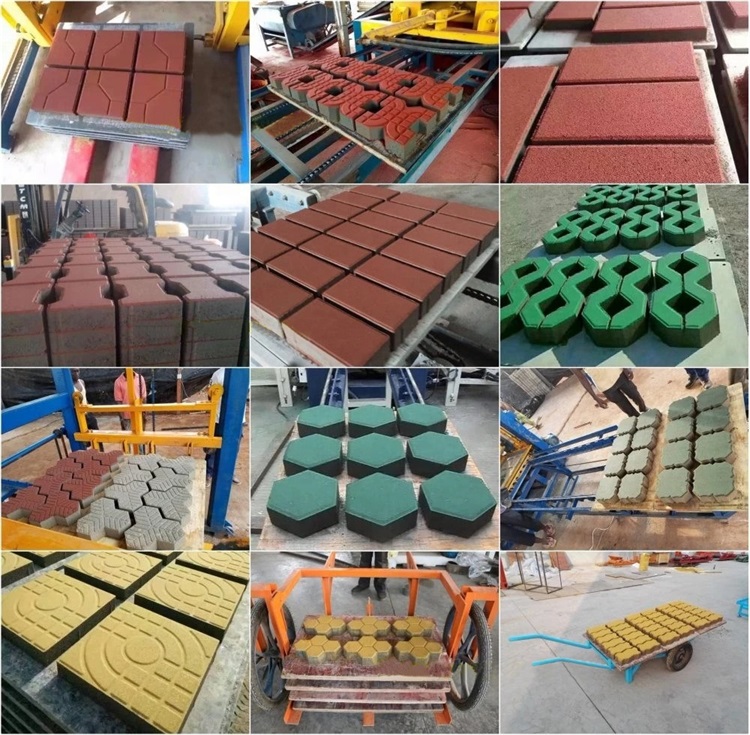

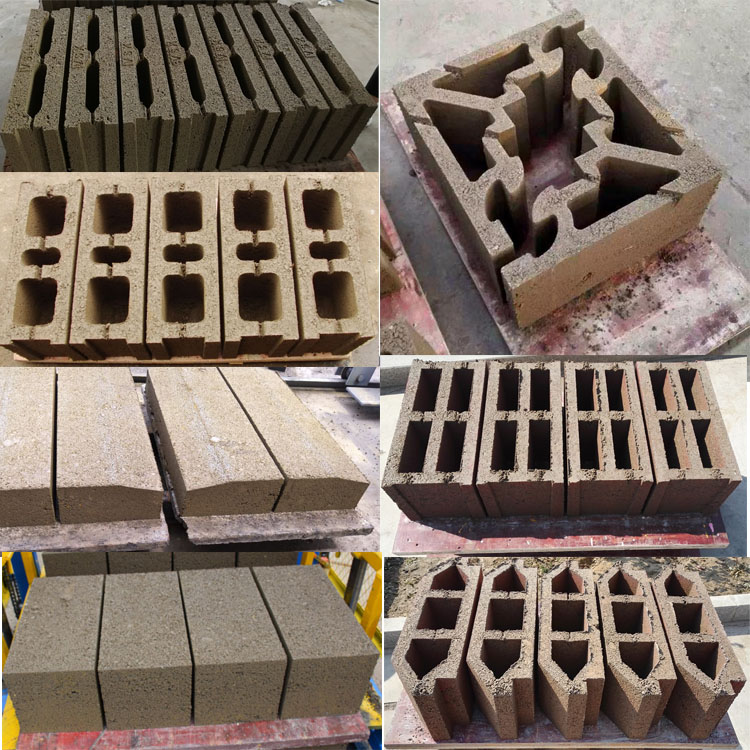

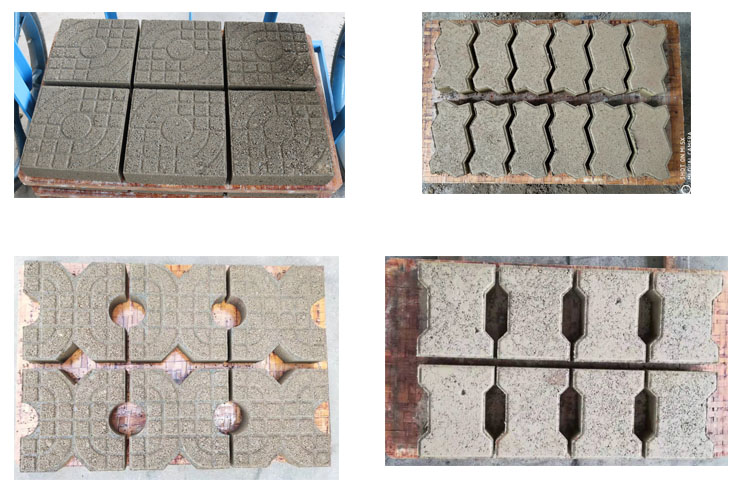

Can Produce all kind of hollow and solid block,paving blocks
