name: M7MI mobile interlocking soil brick making machine
date: 2021-06-06 16:33:59
view: 446
about:

　 Tancheng County Hongbaoyuan Machinery Co., Ltd. is located on Shandong Province and North part of Jiangsu Province, where it is close to the Express Way from Beijing to Shanghai. and only 5 Km to the north from our Factory is Matuo Township of Tancheng Co...

0539 8309839

hyb@hongbaoyuan.net

DETAIL

Overview

Quick Details

Applicable Industries	Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Home Use, Retail, Construction works , Energy & Mining, Other
After Warranty Service	Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location	Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
Showroom Location	Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Malaysia, Australia
Condition	New
Type	Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine, Other
Brick Raw Material	clay, soil, sand, cement, fly ash
Processing	Brick Production Line
Method	Hydraulic pressure
Automatic	Yes
Production Capacity (Pieces/8 hours)	Other, 4480 pcs/8hours, 3400 pcs/8hours, 5760 pcs/8hours, 1920pcs/8hour
Place of Origin	Shandong, China
Brand Name	HONGBAOYUAN
Voltage	diesel engine
Dimension(LWH)	2950X1700X1600mm
Certification	ISO9001/CE/BV
Warranty	1 Year
After-sales Service Provided	Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
Key Selling Points	Automatic

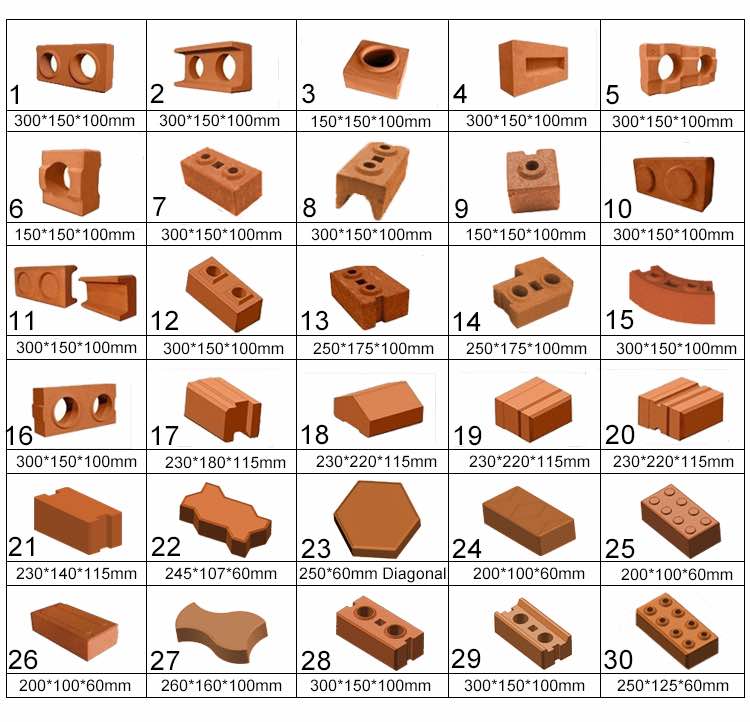

Brick size	20010060 mm, 300150100 mm, 24011590 mm, 20020060 mm, 150150100 mm, Other, 230220115 mm
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Marketing Type	New Product 2020
Warranty of core components	1 Year
Core Components	PLC, Pressure vessel, Other, Engine, Gear, Motor, Pump, Bearing, Gearbox
Color	Optional
Cycle	15-20s
Weight	1200kgs
Raw material	soil and clay
Block Type	Hollow Paver Solid Interlock Blocks
Product Name	m7mi
Cycle time	40s
Main market	African Southeast Countries
Pcs/mould	1 Pcs/mold

M7MI clay brick making machinery interlocking brick machine adobe 2021

1.Brief introduction of low investment business M7MI hydraform clay soil +cement brick machine compressed earth block making machine

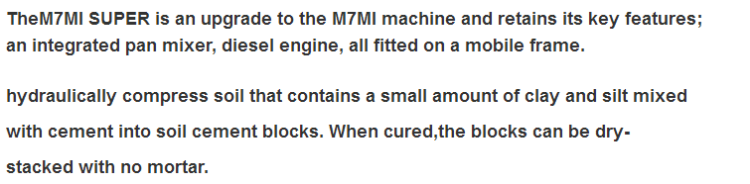

The M7MI SUPER is the latest development from Hydraform now boasting an

improvement of over 45 %in production.

The minimum daily production of 1920 blocks is equal to 45,000 blocks

per month that could produce nine 50m² houses.

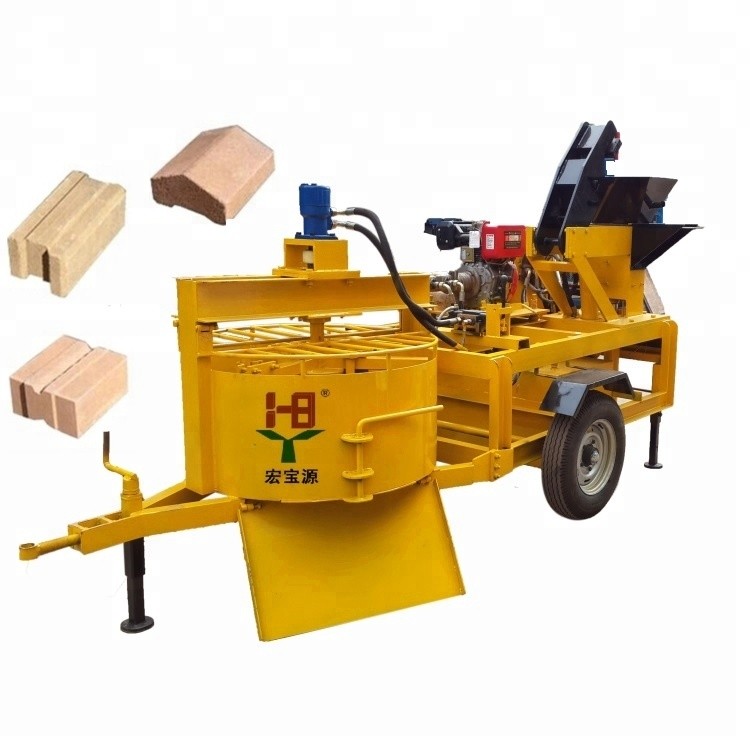

M7MI clay brick making machinery interlocking brick machine adobe 2021(图2)

M7MI clay brick making machinery interlocking brick machine adobe 2021(图3)

M7MI clay brick making machinery interlocking brick machine adobe 2021(图4)

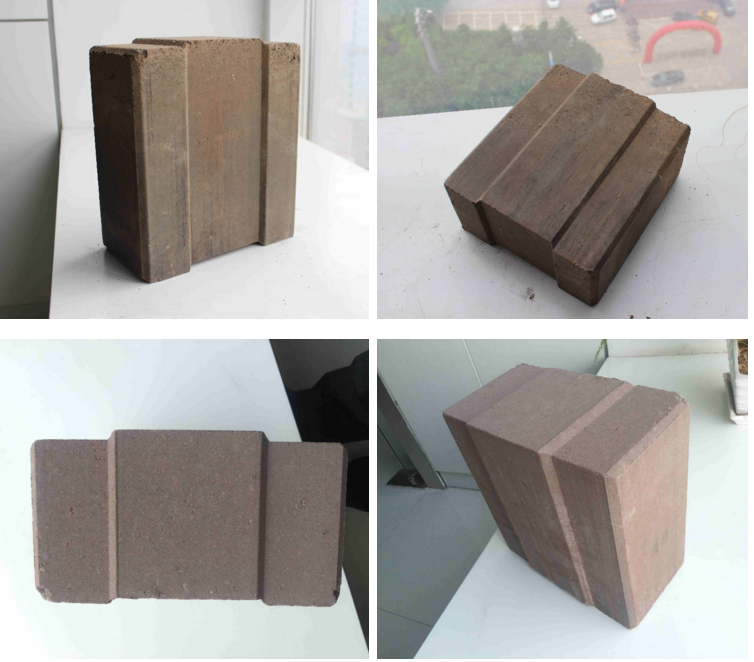

Hydraform soil cement interlocking blocks lock front and back, top and bottom so each block is dry stacked and locked into place.

The unique drystacking building system uses mortar in the first few courses and the top 3-4 courses.

The rest of the super structure is dry- stacked representing significant savings in time and construction costs.

M7MI clay brick making machinery interlocking brick machine adobe 2021(图5)

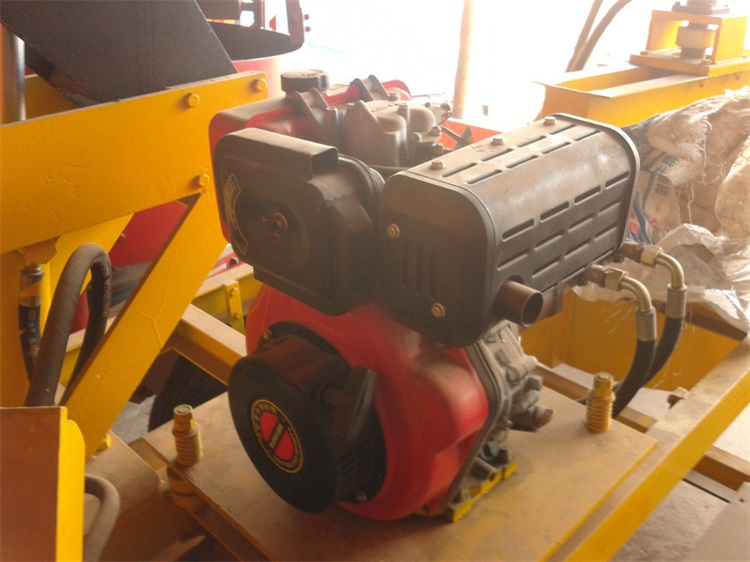

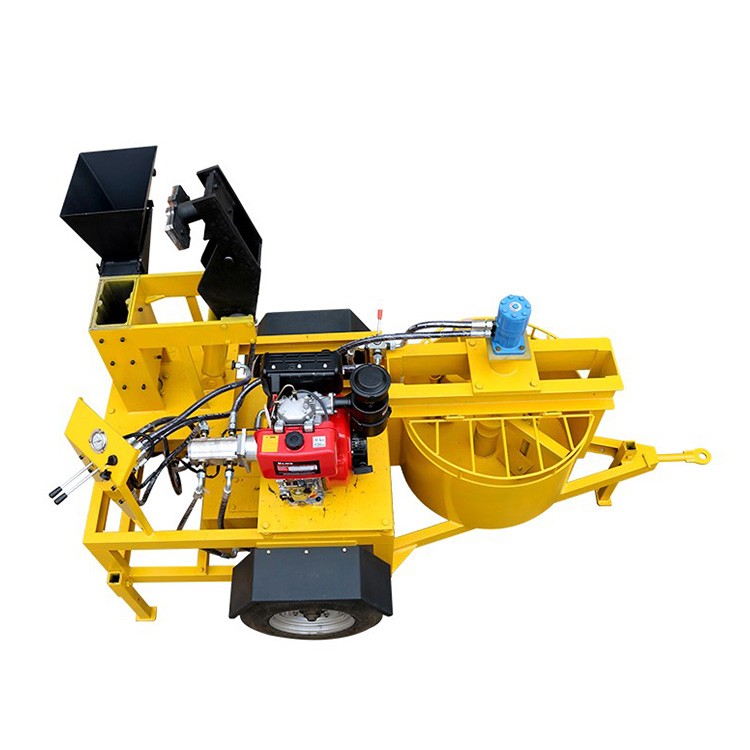

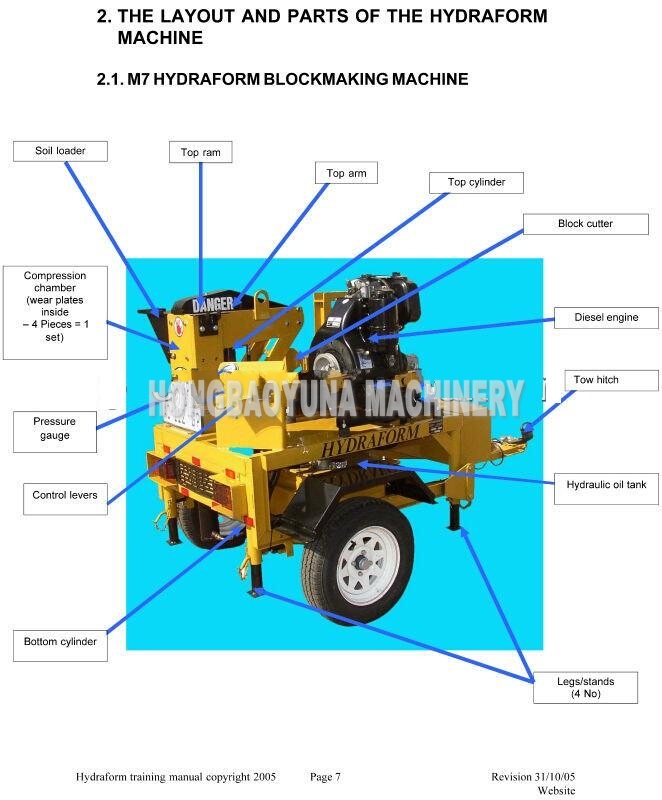

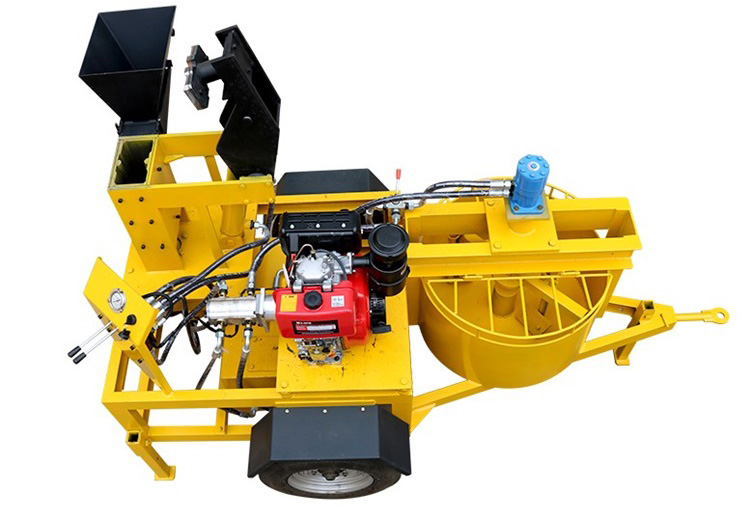

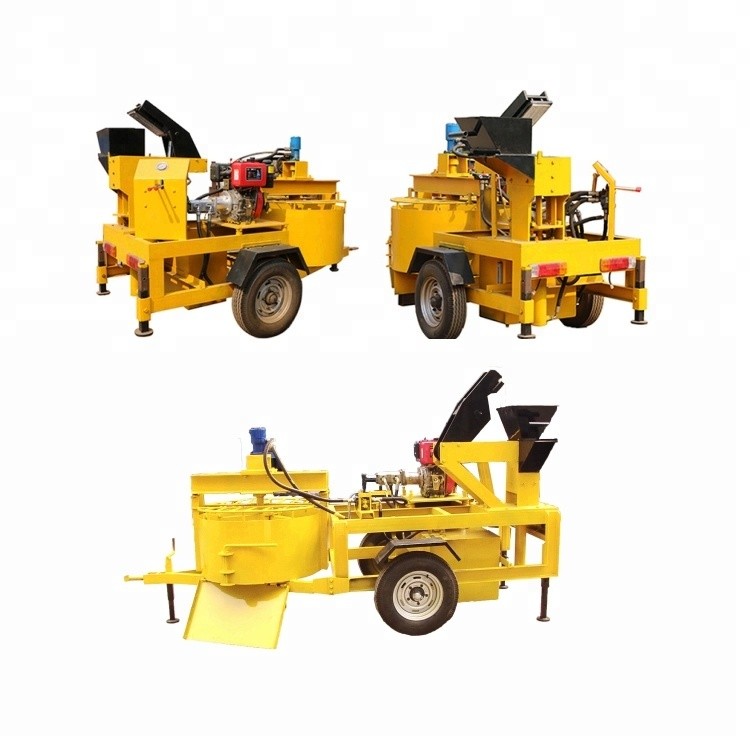

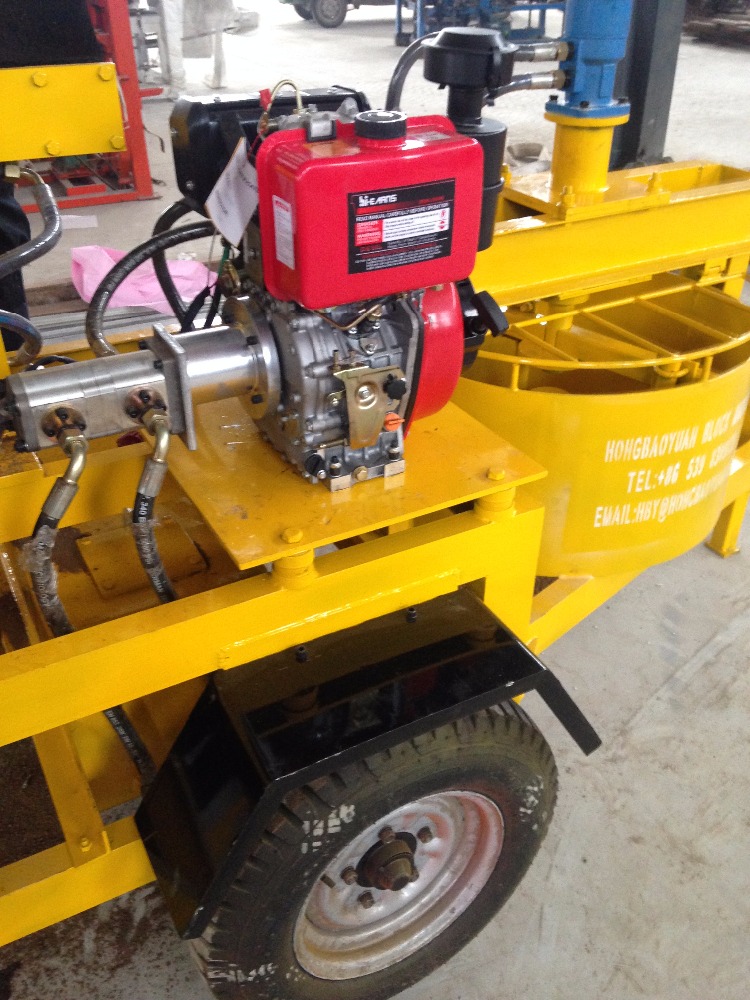

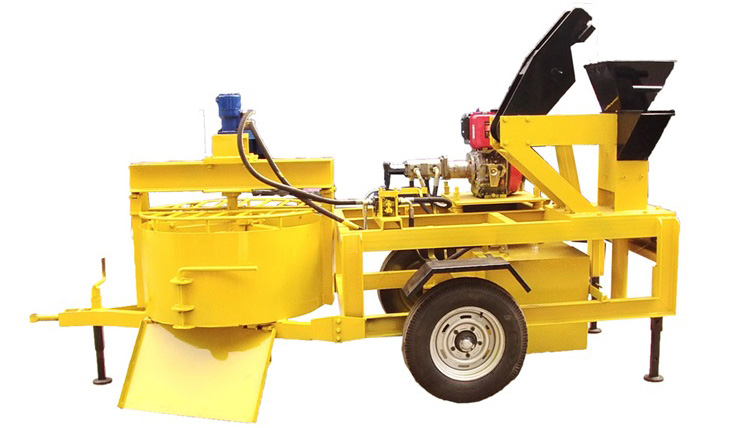

The machine is inclusive of a diesel motor (electric available), hydraulic power pack including cylinders, compression chamber, pre-compacting top gate assembly, all fitted on a trailer inclusive of spring axle, tail lights,tow-hitch and road tyres.

M7MI clay brick making machinery interlocking brick machine adobe 2021(图6)

2.MAIN PARAMETERS of low investment business M7MI hydraform clay soil +cement brick machine compressed earth block making machine

Production	240 blocks per hour or +/- 1920 blocks per day
Features	Mobile, with tow-hitch, tyres and hydraulic pan mixer for a better quality mix
Power source	Diesel (electric motor available)
Dimensions	+/- 2.95 x 1.7 x 1.6m
Weight	+/- 1560 kg excluding crating
Operating staff	+/- 5-7 staff

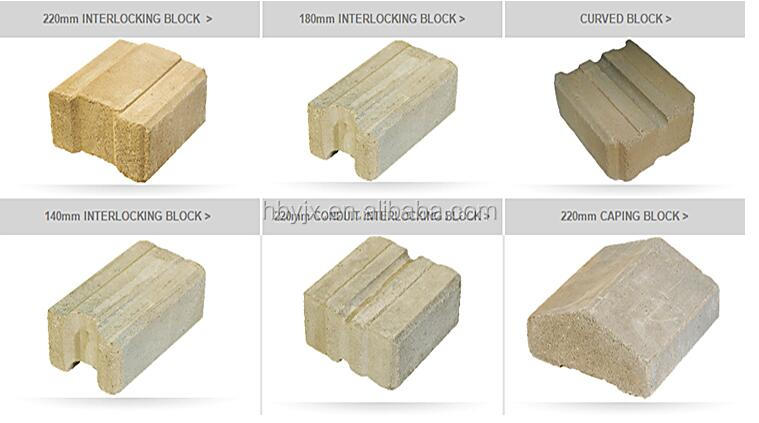

Moulds	Machines come standard with 220mm interlocking block mould which requires minimal mortar
Accessories	Optional extra: spares (one year), block cutter, block tester, 140mm Mould 220mm Conduit Mould, and 220mm Capping Mould
